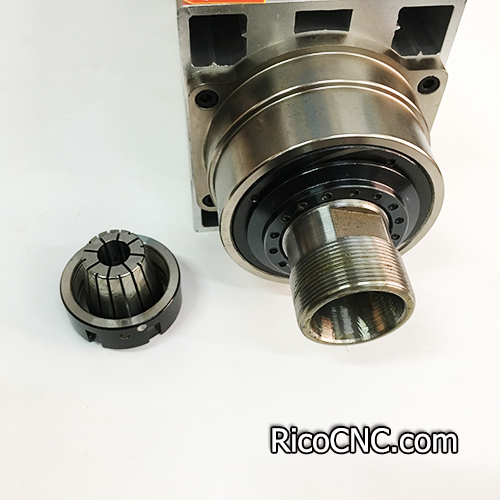

5.5kw air cooled spindle.jpg

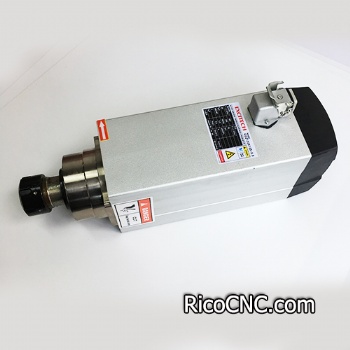

air cooled spindle for cnc engraving machine.jpg

GDZ120X103-5.5 5.5kw Square Air Tooling Spindle Motor for Excitech CNC Router Machines

This spindle is Chinese brand Changsheng 5.5KW ER32 air-cooled square high-speed CNC spindle motor GDZ120X103-5.5. 5.5 kW air-cooled spindle motor with ER32 collet for Excitech CNC router, it features high speed of 18000 rpm and low noise, three-phase, operates at 220V 300Hz, long service life and strict quality control.
Excitech GDZ120X103.jpg


Specification of Changsheng GDZ120X103-5.5 spindle motor:

Model   No

GDZ120*103-5.5

Brand   Name

CHANGSHENG

Power

5.5KW

Speed(R/Min)

18000RPM

Voltage

380V

Current

12.0A

Frequency

600HZ

Voltage

12V

Current

4.3A

Collet

ER32

Lubrication

Grease

Cooling   Type

Air Cooling

Bearing   Type

2*7008c   P4+2*7004c P4

Application

Be used in internal and   external grinding, precision engraving, CNC drilling, milling equipment, edge   bander and so on.

Certification

ISO9001, CE, SGS, ROHS

Spindle Motor for Excitech CNC Router Machines.jpg

RicoCNC is a reliable source for CNC spare parts and woodworking machine replacements, such as CNC tool holders and forks, CNC router bits, foam mill cutters, CNC wood lathe knives, edge bander spare parts, CNC vacuum pods, etc for Biesse, Homag, Weeke, and other common brands in CNC industries. We own many years of experience in the CNC industry and have shipped CNC machine parts to over 100 countries.


Changsheng GDZ120X103-5.5.jpg
