HITECO ELECTRO SPINDLE ISO30 29L0213907E QE-1F 8-12 24 I30 NL CB

HITECO ELECTRO SPINDLE ISO30 29L0213907E QE-1F 8-12 24 I30 NL CB

• HITECO ELECTRO SPINDLE
• Hiteco Electro-spindle 8/9.5Kw ATC ISO30
• Hiteco 29L0213907E
• ATTACCO ISO30 DIN 69871-1
• TOOL INTERFACE ISO30 DIN 69871-1
• Electrospindle ATC
• QE-1F 8/12 24 I30 NL CB
• ISO30 Spindle
INQUIRY

HITECO ELECTRO SPINDLE ISO30 29L0213907E QE-1F 8/12 24 I30 NL CB

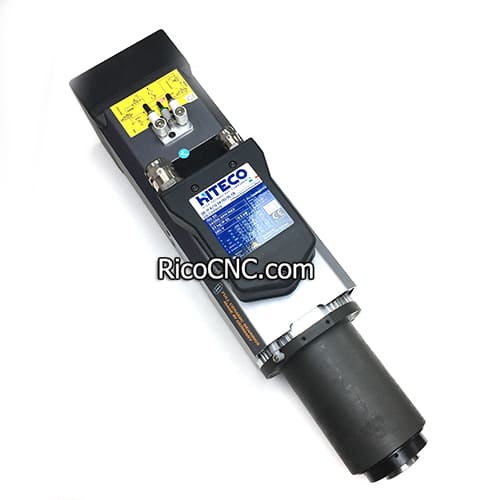

This is an ATC electro spindle, made by SCM Hiteco. It is a ISO30 tool interface, SCM model number is 29L0213907E, QE-1F 8/12 24 I30 NL CB. It suitable for machining wood, plastic and composite materials.

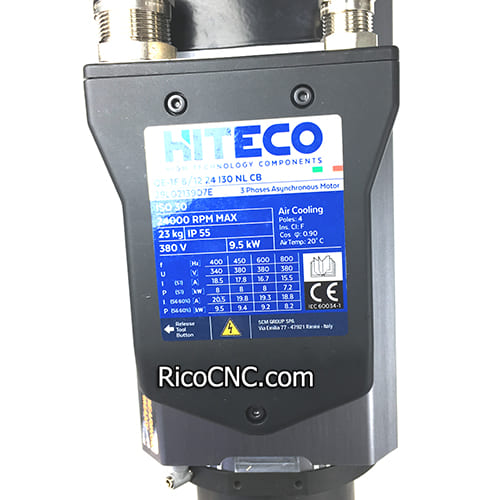

QE-1F 8:12 24 I30 NL CB.jpg

QE-1F 8/12 24 I30 NL CB specification:

SPECIFICATIONS
Max power S1/S6	kW	8/9.5
Nominal power	rpm	12000
Max rotation speed	rpm	24000
Max torque S1/S6	Nm	6.4/7.6
Current S1/S6	A	18.5/20.5
Voltage	V	380
Type of electrospindle	Synchronous 4 Poles
Weight	kg	21

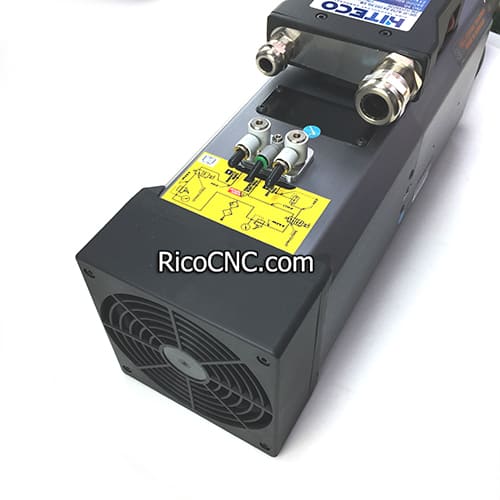

Electrospindle ATC.jpg

EQUIPMENT
Tool taper	ISO 30
Type of tool changer	Automatic
Bearings	Ceramic - grease lubrication for life
Cooling	Liquid
Sensors	S1 (Tool grip)
	S2 (Collet open)
	S3 (Spindle rotation)
Release cylinder	Pneumatic double-action
Other specifications	Taper blow
	Pressurised labyrinth

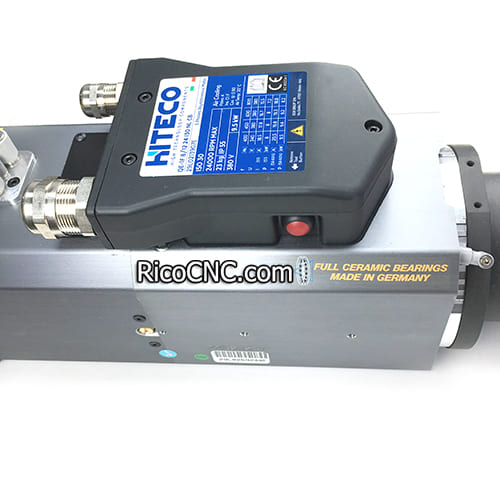

HITECO ELECTRO SPINDLE.jpg

29L0213907E ISO30 spindle Features:

• Suitable for machining wood, plastic and composite materials

• Different types of electrical connections available

• Liquid cooling available for intensive uses

• Setup for installing aggregates (in manual version with flange and in motor-driven version with Axis C)

• Available with HSK 63F, ISO30 and BT30 connections

• Simple maintenance with spindle kit management

• speed, vibrations and temperature directly to your PC (link)

• With the same layout there is a wide range of power options available

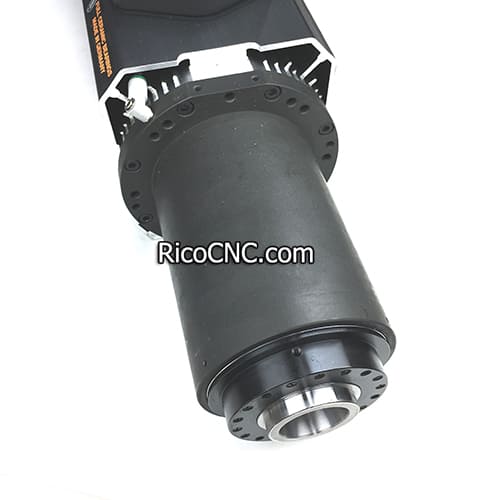

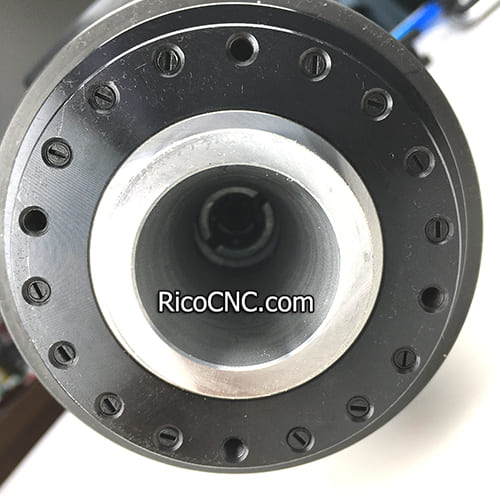

ATTACCO ISO30 DIN 69871-1.jpg

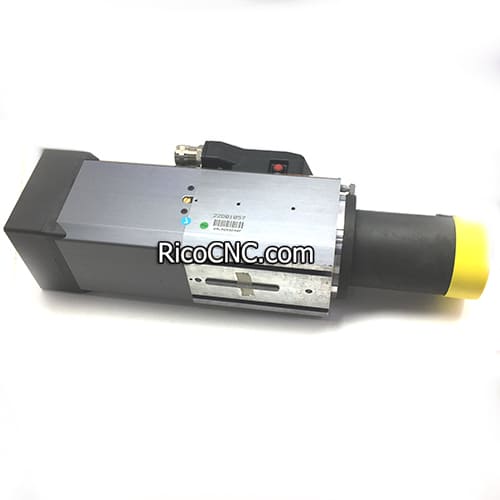

Hiteco Electro-spindle 8:9.5Kw ATC ISO30.jpg

Rico offers a wide range of motorised spindles with power from 4 kW to 42 kW and speeds from 1,000 to 40,000 RPM, with manual or automatic shanks (e.g. ISO or HSK). The spindles can be air or liquid cooled and can be equipped with different types of accessories such as conical supports, cylindrical bodies or flanges.

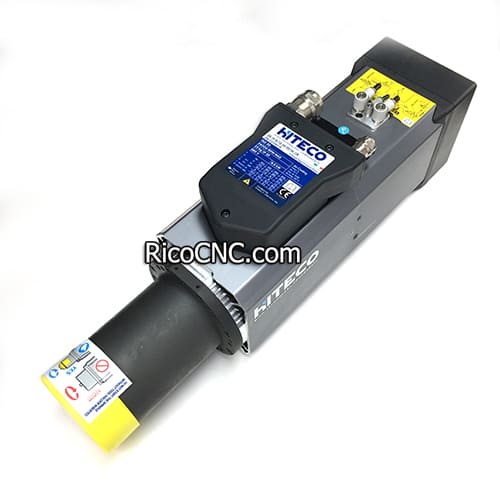

ISO30 Spindle.jpg
