Royal BT40 External Thread Pull Stud Grippers for BT 40 ATC Spindle

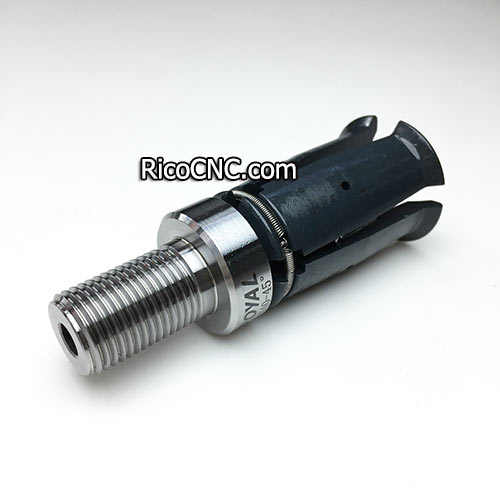

This gripper is Royal BT40-45° external thread (Outer Screw) gripper. There are 4pcs petal pull claw.

Royal Gripper.jpg

This gripper is widely used for Royal BT40 auto tool changer spindles. This is spindle tool clamping pull stud gripper is a normal spare part for VMC and HMC machines.
Royal spindle CNC gripper.jpg

Royal BT40-45°external thread pull stud gripper features:
100% brand new & high quality
Brand: ROYAL (made in Taiwan)
Total length: 85mm
Clamp length: 48mm
Inner thread: M16x1.5P
Matching pull bolt: 45 degree
Flange outer diameter: 26mm
Petal pull claws: 4pcs
FS: (Max. Clamping Force): 18 kN
MA: (Max. Tightening Torque): 65Nm
Grippers have the held position function.
Special treated segments can provent abrasion
Gripper BT40 for pull rod assy.jpg

We also can supply internal thread BT40 gripper.
Royal BT40 pull gripper.jpg

ACROW BT40 45 degree external thread, BT30, BT50 grippers are also available here. We also can supply gripper brand such as Chumpower, TALONS, ROYAL, BERG, ACROW, etc.
