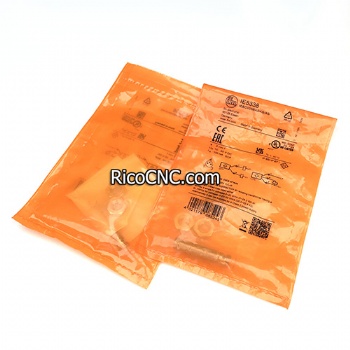

4008610712 4-008-61-0712 Inductive Sensor IFM Proximity Switch Three-wire IE5338 for HOMAG WEEKE
This is the replacement for Homag Sensor inductive, it is three-wire, Cylindrical, 3mm, NPN/PNP-NO,10-30VDC,100mA, M8, Flush, IFM IE5338. Homag part number is 4008610712 4-008-61-0712.
4-008-61-0712 Inductive Sensor IFM IE5338 proximity switch specification:
Product Attribute | Attribute Value |
Body Style | Cylindrical |
Connection Type | M8 3-Pin |
Housing Material | Brass |
IP Rating | IP65 ; IP67 |
Maximum Operating Temperature | 60 C |
Measurement Range | 3 mm |
Minimum Operating Temperature | 0 C |
Mounting Style | Flush Shielded |
Mounting Type | M8 x 1 Threaded |
Output | NPN/PNP-NO |
Primary Type | Inductive Proximity Sensors |
Series | IE53 Series |
Shielding | Shielded |
Supply Voltage | 10-30 VDC |
Switching Current | 100 mA |
Switching Frequency | 0.8 kHz |
Termination | 3-wire |
There also other inductive sensors for Homag, such as:
4008611272 4-008-61-1272 Inductive Sensor IE5349
4008610712 4-008-61-0712 Inductive Sensor IE5338
4-008-61-0111 4008610111 Sensor inductive Holzma M12X1 L 44/56 SN 4 NO
4-008-61-0158 4008610158 Sensor inductive HOLZMA M12X1 L 44/56 SN 4 NC
4-008-61-0309 4008610309 sensor Proximity PNP M18X1 L=48/59 SN=12 NO
RicoCNC can supply various of Homag/Brandt spare parts, please check our website, if you can not find, please contact us for more information!
