Homag 4-035-01-1133 4035011133 Pneumatic Cylinder ISO 6432 MINI MIC25X300SCAG

Homag 4-035-01-1133 4035011133 Pneumatic Cylinder ISO 6432 MINI MIC25X300SCAG

• 4-035-01-1133 Pneumatic Cylinder
• 4035011133 Homag Woodworking Accessories Cylinder
• ISO 6432 Mini cylinder
• D=25 Hub=300 G1/8 Pneumatic Cylinder
• MINI CYLINDER ISO MIC
• MIC25X300SCAG
• Weeke PTP160 Dust hood switch cylinder
• Round Body Air Cylinder MI25X300SCAG
INQUIRY

Homag 4-035-01-1133 4035011133 Pneumatic Cylinder ISO 6432 MINI MIC25X300SCAG

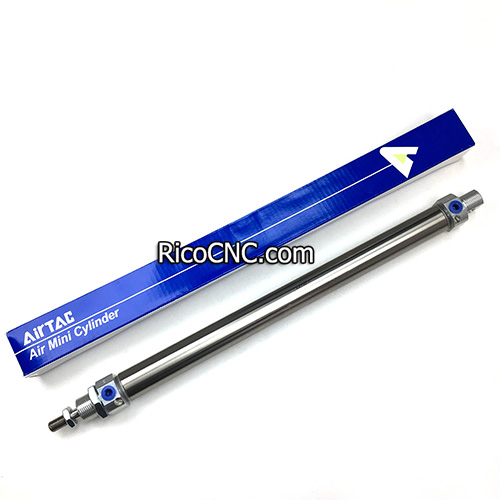

This is a round body air cylinder, double acting, ISO6432 Mini Diameter 25mm, stroke 300mm G1/8. It is for Homag weeke PTP160 machine. Homag part number is 4-035-01-1133 or 4035011133.

4035011133 Homag Woodworking Accessories Cylinder.jpg

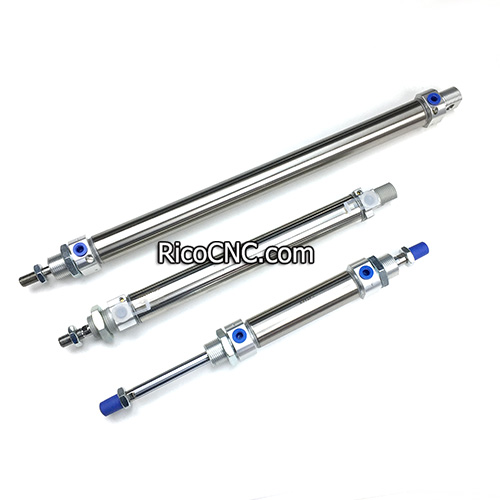

ISO 6432 Mini cylinder.jpg

4-035-01-1133 Pneumatic Cylinder Product Features:

1.In accordance with ISO6432 standard (8mm - 25mm bore size)

2.Front and back cover owns fixed bumper pad which can reduce the impact of direction-change of the cylinder.

3.There are several modes of back cover, which makes the installation of cylinder more convenient.

4.Front and back cover and stainless steel block adopt riveted rolling packed structure to form a reliable connection.

5.Piston rod and cylinder body with the material of stainless steel make the cylinder adapt general working environment with corrosivity.

6.There are cylinders and accessories with several specifications for installation for your choice.

MINI CYLINDER ISO MIC.jpg

D=25 Hub=300 G1:8 Pneumatic Cylinder.jpg

4035011133 Homag Woodworking Accessories Cylinder Specification:

Acting Type	Double Acting
Airtac mi	Round Body Air Cylinder Stainless Steel ISO6432
Back Cover Type	Pivot
Bore Size	25mm
Brand	Airtac
Component Type	Round Body Pneumatic Cylinder
Magnet	With Magnet
Stroke Length	300mm
