4035020002 4-035-02-0002 Short Stroke Cylinder 0822406340 Aventics Pneumatic Cylinder for Homag

4035020002 4-035-02-0002 Short Stroke Cylinder 0822406340 Aventics Pneumatic Cylinder for Homag

• 4-035-02-0002 Short Stroke Cylinder
• 4035020002 cylinder 32X5MM
• 0822406340 Aventics Pneumatic Cylinder
• Aventics KHZ-SA-032-0005-O
• AVENTICS 0822406340
• 0822406340 REXROTH
• Rexroth 0822406340 10 Bar Valve Blocks
• Cylinder for Homag
INQUIRY

4035020002 4-035-02-0002 Short Stroke Cylinder 0822406340 Aventics Pneumatic Cylinder for Homag

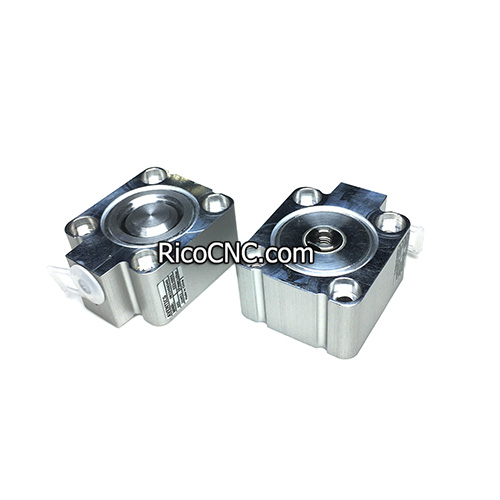

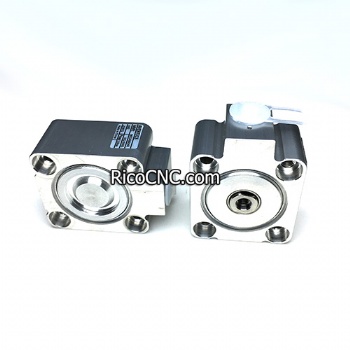

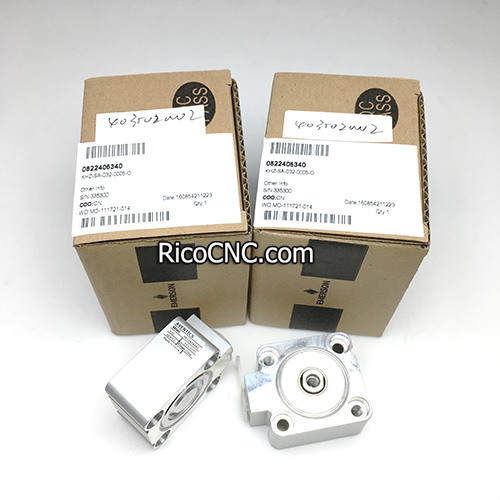

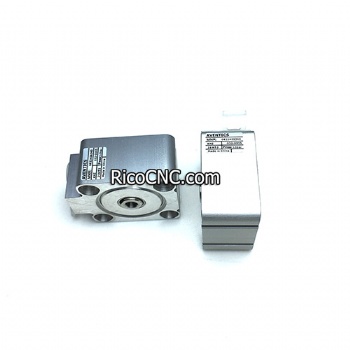

This AVENTICS pneumatic cylinder is a short stroke cylinder, part number is 0822406340, KHZ-SA-032-0005-0. It can be used for Homag machine, and Homag part number is 4035020002 or 4-035-02-0002.

4035020002 cylinder 32X5MM.jpg

4-035-02-0002 Short Stroke Cylinder Material:

Cylinder tube	Aluminum, anodized
Piston rod	Stainless steel
Piston	Nitrile rubber
Front cover	Brass Aluminum
End cover	Aluminum

0822406340 Aventics Pneumatic Cylinder specification:

Weight	0.133 kg
Cushioning	elastic
Pneumatic port	G 1/8
Stroke	5 mm
Piston diameter	32 mm
Piston rod thread	M6
Ambient Temperature Max	80DegC
Ambient Temperature Min	-25DegC
Acting principle	Retracted Without Pressure, Single Acting
Working Pressure Max	10 Bar
Working Pressure Min	1.3 Bar
