4-035-01-0006 Homag 4035010006 Pneumatic Aventics 0822121008 Profile Cylinder for Beam Saw

• AVENTICS 0822121008 Profile cylinder ISO 15552
• PRA series (PRA-DA-040-0250-0-2-2-1-1-1-BAS)
• Aventics pneumatic cylinder 0822121008
• Diameter=40mm stroke=250mm, double-acting,
• AVENTICS pneumatic profile cylinder
• Homag 4-035-01-0006 pneumatic cylinder
• Rexroth PRA ISO profile cylinder
• 4035010006 pusher lifting cylinder
INQUIRY

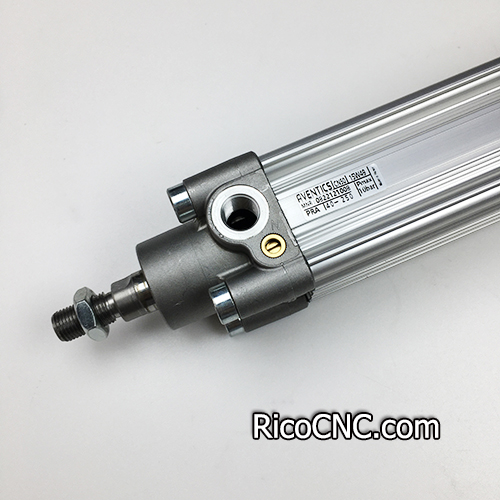

Aventics 0822121008.jpg

4-035-01-0006 / 4035010006 Pneumatic Aventics 0822121008 Profile Cylinder for Homag Beam Saw

This is AVENTICS 0822121008 profile cylinder ISO 15552, PRA series (PRA-DA-040-0250-0-2-2-1-1-1-BAS), 40mm Bore, 250mm Stroke, double-acting.

This AVENTICS pneumatic profile cylinder can be used on Homag beam saw PROFI HPL380/43/22, Homag part number 4-035-01-0006 or 4035010006.
Aventics 0822121008 cylinder.jpg

Specification of 4-035-01-0006 pneumatic cylinder:

Description
Series	PRA	Profile cylinder - series PRA
Piston diameter	40	Piston diameter 40
Stroke	250	Stroke in mm
Threads	0	ISO Threads
Tube	3	Advanced Profile: sensors on 4 sides
Cushioning	2	Pneumatic cushioning
Piston	2	Piston with magnet
Piston rod	1	Single
Sealings	1	Standard
Scraper	1	Scraper - standard
Corrosion protection	1	Standard
Piston rod extension	0	Without piston rod extension
ATEX	0	Without ATEX
Trunnion mounting	0	Without trunnion mounting
Position trunnion mounting	0
End covers	0	End covers without surface treatment
Port position
Port position front	0	0° (12h)
Port position rear	0	0° (12h)
Accessories
Piston rod mountings	0	No mounting
Mounting at front cover	0	No mounting at front cover
Mounting orientation front	0	Without mounting
Mounting at rear cover	0	No mounting at rear cover
Mounting orientation rear	0	Without mounting
Counter bearing	0	No counter bearing
Guide units	0	No guiding unit, no locking element
Sensor type	0	Without Sensor
Sensor position	0	Without sensor position
Fittings front	0	Front cover - without fitting
Fittings rear	0	Rear cover - without fitting

AVENTICS 0822121008 Profile cylinder.jpg

0822123005, 0822121001, R480041559, R988050802, 0821302726, 0822121008, 4035010006, 0822334503 0822406341 0822406340 0822406350 are available here.
