BT50-D50-300 BT50 Test Bar 300MM Gauge Length OD50mm for Spindle Runout Test

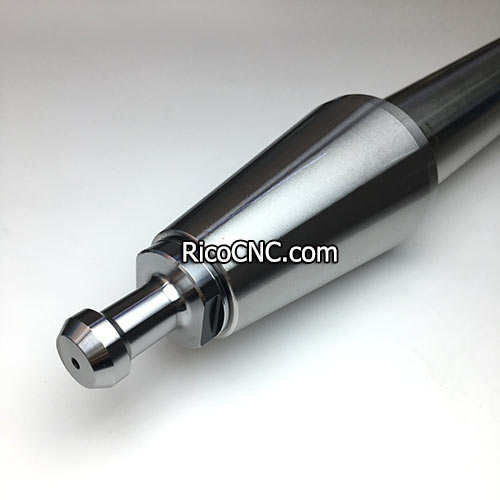

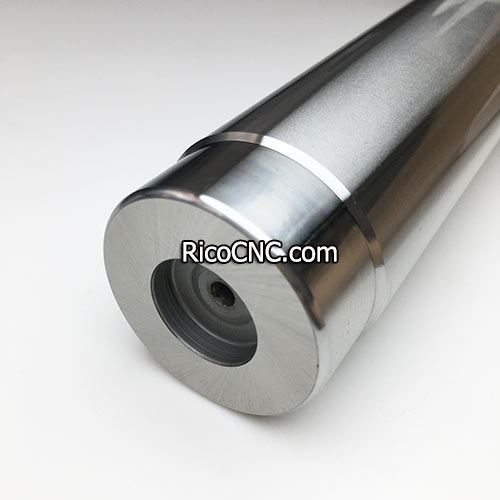

This is BT50-D50-300 test bar, for MAS BT50 taper spindle runout testing.

Description	Diameter (mm)	Gauge Length (mm)
BT50 Test Arbor	50	300

BT50 test arbor.jpg

The spindle runout test bar can be used to test your CNC machine tools for precise accuracy and proper alignments.

Spindle Runout Testbars are easy to use and they fast way to verify your machine spindle is running properly.

Test arbor MAS BT 50.jpg

BT50 spindle test arbor parameters:

Material: 20CrMnTi.

Carburised Depth: >0.8mm

Surface Finish: Max. Ra0.25

Material Hardness: HRC54-56.

Tool Holder Shank Type: BT50

Tool Holder Size: Test Bar D50

Gauge Length (mm): 300

Tool Holder Type: Test

Runout Tolerance: ≤3μm

This test arbor is suitable for calibrating your machine spindle or tool presetter

Protective case included

test arbor BT50-D50-300.jpg

RicoCNC tooling systems has expanded its line of precision test bars with models for BT30, BT40 and BT50; ISO30, CAT40 and CAT50; and HSK50A, HSK63A, HSK63E, HSK63F, HSK80A, and HSK100A.

BT50 Gauge Tool.jpg

These test bars are designed for easy and quick confirmation of accurate machine spindle alignment. Regular inspection of the spindle with a test bar can improve tool life by helping operators reduce TIR.

Please contact us for more information if any needs for CNC toolings!
