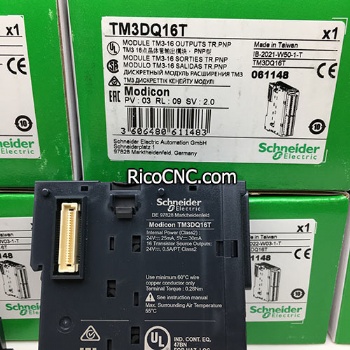

TM3DQ16T Expansion Modules.jpg
TM3DQ16T / TM3DQ16TG Module 16 Regular Transistor Source Outputs 0.5A 24 Vdc

TM3DQ16T module TM3 - 16 outputs transistor PNP. Discrete type TM3DQ16T (screw), TM3DQ16TG (spring) digital expansion module. It is TM3 Digital Output Modules. It can be used on SCM machine, and SCM part number is 00L0580061B.

The Modicon TM3 is an EcoStruxure Machine I/O system. PLC I/O Module for use with Modicon M221, Modicon M241, Modicon M251.
TM3DQ16T (screw), TM3DQ16TG (spring) digital expansion module:
• 16 channels
• 0.5 A source outputs
• 1 common line
• Removable screw or spring terminal block
• Model size: 90 x 23.6 x 70 mm


Characteristic

Value

Number of   output channels

16

Logic type

Source

Rated output   voltage

24 Vdc

Rated output   current

0.5 A

Connection   type

TM3DQ16T

Removable   screw terminal blocks

TM3DQ16TG

Removable   spring terminal blocks

Cable type and   length

Type

Unshielded

length

Max. 30 m (98   ft)

Weight

110 g (3.90   oz)

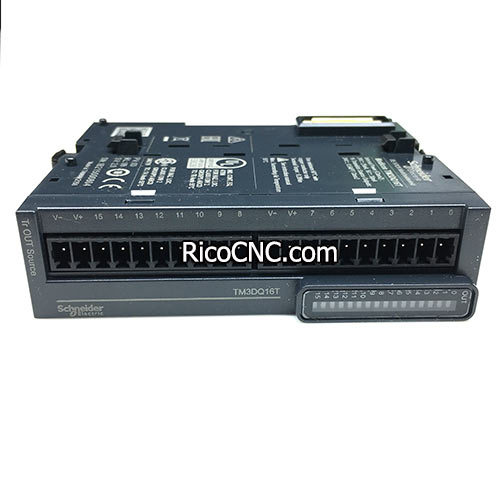

TM3DQ16T Size.jpg

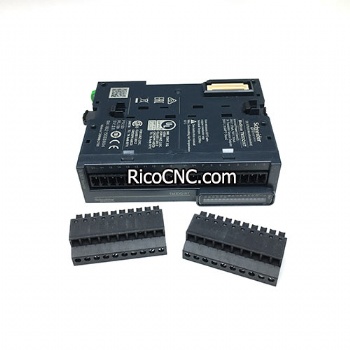

These expansion modules have a built-in removable screw or spring terminal block for the connection of outputs and power supply.

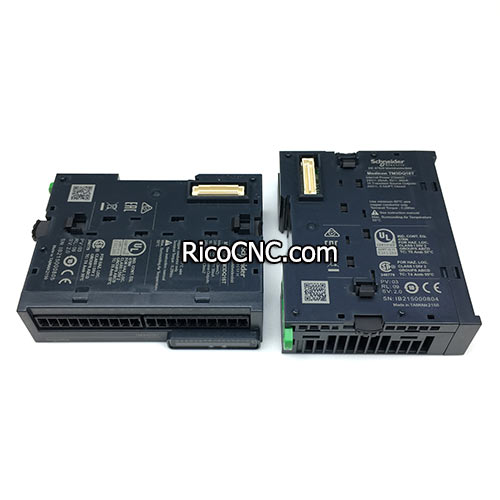

Modicon TM3DQ16TG.jpg

As a Schneider Electric Industrial Repair Services brand, Modicon products are stable, reliable controllers that are found across a wide range of industries in process machinery, infrastructure platforms, and commercial machines.

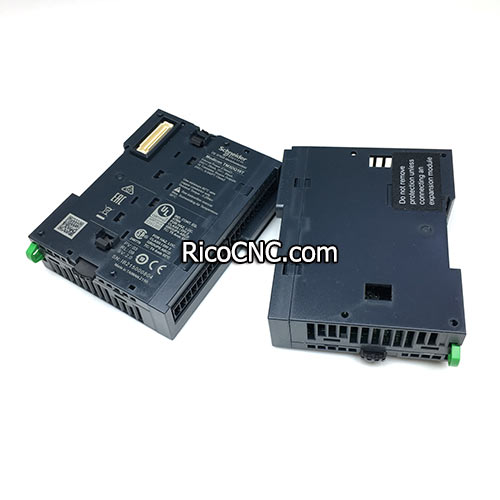

tm3dq16t schneider.jpg

RicoCNC also can supply other TM3 series models. TM3AI2H, TM3AI8, TM3AQ2, TM3DI16, TM3DI32K, TM3DI8, TM3DM24R, TM3DM8R, TM3DQ16T, TM3DQ16R, TM3DQ8R, TM3TI4, TM3TM3, TM3XREC1, TM3XTRA1, TM3AI4, TM3RDM32R, TMC4AQ2, TMC4AI2, TM3RDM16R are available here.
TM3 series Features:

• Digital I/O modules which can be used to create configurations with up to 264 digital I/O. These modules are available with the same connections as the controllers
• Analog I/O modules which can be used to create configurations with up to 114 analog I/O and are designed to receive, amongst other things, position, temperature or speed sensor signals
• They are also capable of controlling variable speed drives or any device equipped with a current or voltage input
• Expert modules for the control of TeSys motor starters which simplify wiring up the control section due to connection with RJ45 cables
• Functional Safety modules which simplify wiring and can be configured in the EcoStruxure Machine Expert - Basic software
• In addition, the Modicon TM3 expansion system is flexible due to the possibility of remotely locating some of the Modicon TM3 modules in the enclosure or another cabinet (up to 5 meters away, using a bus expansion system
• It is common to the whole range of Modicon M221, M241 and M251 logic controllers, meaning that the model of controller can be revised without changing expansion mould

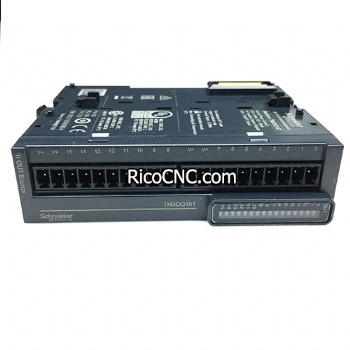

TM3DQ16T Digital Output Modules.jpg

RicoCNC is a reliable CNC spare parts and automation parts supplier based in China. You can find a number of CNC machine parts here, such as CNC tool holders, collets, nuts, pull stud, collet spanner, toolholder tightening fixture, tool holder forks, CNC machining center parts and edge banding machine parts, also tools and parts for motion system, transmission system!
SCM 00L0580061B .jpg

Welcome to contact us if any inquires for industrial automation parts!
