10.01.12.04069 CNC Vacuum Pods VCBL-K1-PRO 160x115x100mm for Homag Weeke Single Circuit Console

10.01.12.04069 CNC Vacuum Pods VCBL-K1-PRO 160x115x100mm for Homag Weeke Single Circuit Console

• Molde: VCBL-K1-PRO 160x115x100mm
• Replacement for Homag 2-056-26-0440
• 100mm height VCBL-K1 vacuum pods
• 10011204069 vacuum pods
• Dimensions (L x W x H): 160 x 115 x 100mm
• Suction cups height of 100mm
• 160x 115mm VCBL-K1 vacuum cups
• Weeke 100mm vacuum pod
INQUIRY


10.01.12.04069 CNC Vacuum Pods VCBL-K1-PRO 160x115x100mm for Homag Weeke Single Circuit Console

This is suction cup VCBL-K1 160x115x100, compatible with one circle console machines with a suction cup base area of 160 x 115 mm and a suction cup height of 100 mm. This vacuum block is a replacement for Homag 2-056-26-0440

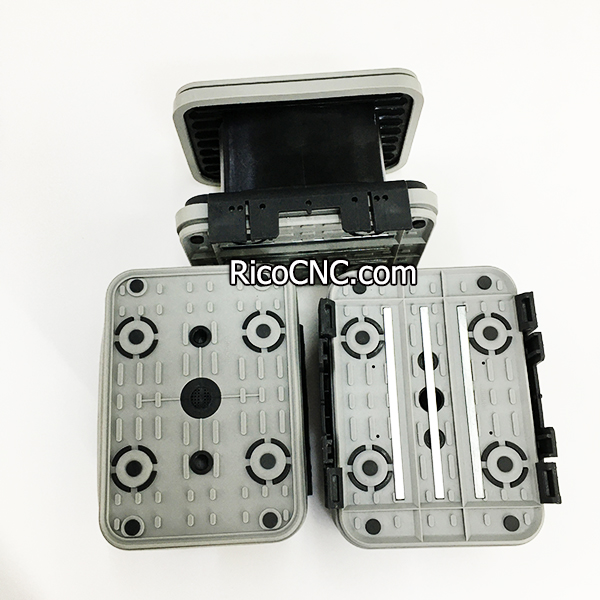

VCBL-K1 160x115x100mm.jpg

This suction cup is 100mm height one circuit console vacuum block, same use as Schmalz part No. 10.01.12.04069, widely used with single-circuit vacuum beam tables used in Homag and Weeke machining centers.

2056260440 VCBL-K1 CNC suction cups dimension:
Dimensions (L x W): 160 x 115mm
Height: 100 mm
Lower suction cover: 160 x 115mm
Bottom rubber pads: 160 x 115mm

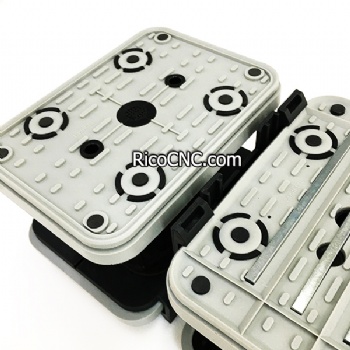

100mm VCBL-K1 suction pod.jpg

The 10011204069 CNC vacuum suction cup is a complete vacuum block. The upper rubber pads 4-011-11-0192 and bottom suction plate 4-011-11-0340 can be easy to exchange if damaged.
