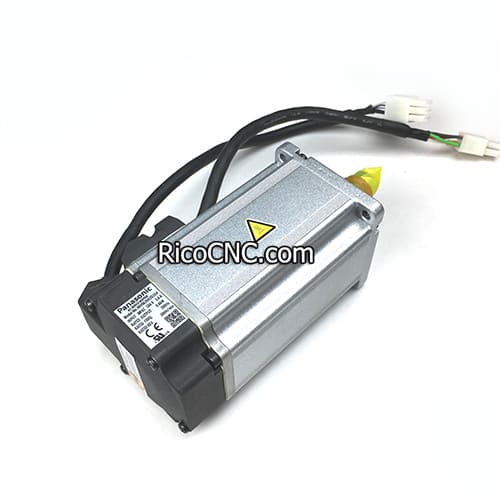

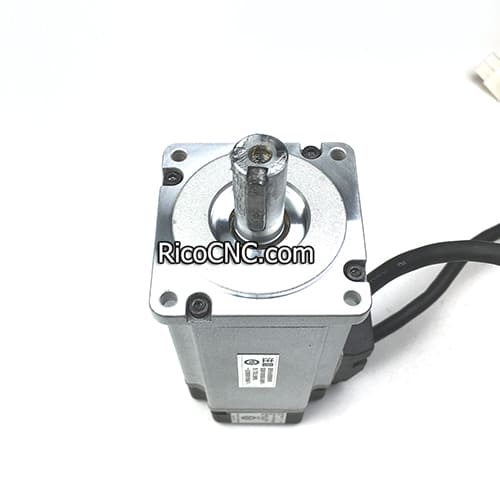

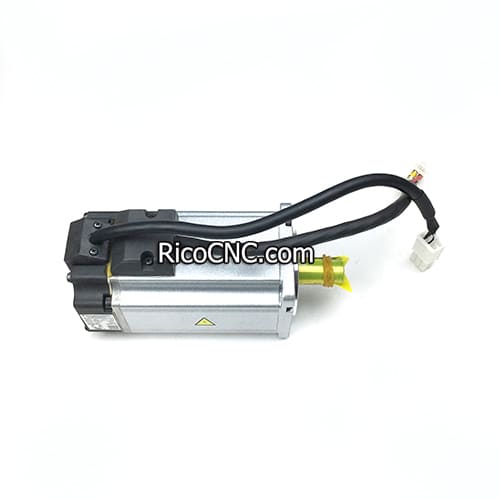

Panasonic MHMJ042G1S4 MINAS A5 Family Servo Motor
This is a MINAS A5 family servo motor from Panasonic, the model number is MHMJ042G1S4. It is a high performance, multi-functional and compact AC Servo Motors from Panasonic.
MHMJ042G1S4 specification:
| Item | Specifications |
| Part Number | MHMJ042G1S |
| Details | High inertia, Lead wire type, IP65 |
| Family Name | MINAS A5 |
| Series | MHMJ Series |
| Type | High inertia |
| Protection class | IP65 |
| About Enclosure | Except rotating portion of output shaft and leadwire end. |
| Flange sq. dimension | 60 mm sq. |
| Flange sq. dimension (Unit:mm) | 60 |
| Motor lead-out configuration | Lead wire |
| Motor encoder connector | Lead wire |
| Power supply capacity (kVA) | 0.9 |
| Voltage specifications (V) | 200 |
| Rated output (W) | 400 |
| Rated current (A (rms)) | 2.6 |
| Holding brake | without |
| Mass (kg) | 1.4 |
| Oil seal | without |
| Shaft | Key-way, center tap |
| Rated torque (N ⋅ m) | 1.3 |
| Momentary Max. peak torque (N ⋅ m) | 3.8 |
| Max. current (A (o-p)) | 11 |
| Rated rotational speed (r/min) | 3000 |
| Rated rotational Max. speed (r/min) | 5000 |
| Moment of inertia of rotor ( x10-4 kg ⋅ m²) | 0.67 |
| Recommended moment of inertia ratio of the load and the rotor | 30 times or less |
| Rotary encoder: specifications | 20-bit Incremental system |
MHMJ042G1S4 AC servo motor Features:
20-Bit Incremental Or 17-Bit Absolute Encoder
2kHz Response Frequency
Low Cogging Torque
Real-Time Auto-Gain Tuning
Manual And Auto Notch Filters
Manual And Auto Damping Filters
MHMJ082G1S4 can be supplied here!
Panasonic MHMJ042G1VS AC Servo Motors have been around for a long time and are utilized in many applications. They are small in size but pack a big punch and are very energy-efficient. These features allow them to be used to operate remote-controlled or radio-controlled toy cars, robots, and aeroplanes. Servo motors are also used in industrial applications, robotics, in-line manufacturing, pharmaceutics, and food services.
