4086050497 PLC Module 4-086-05-0497 Relay KL4001 for HOMAG

4086050497 PLC Module 4-086-05-0497 Relay KL4001 for HOMAG

• 4-086-05-0497 Relay
• 4086050497 PLC Module
• Beckhoff KL4001
• BUS TERMINAL KL4001 OUT-1/0-10V
• Homag part
• Beckhoff KL4001 PLC Module
• 1-channel BUS TERMINAL
• KL4001
INQUIRY

4086050497 PLC Module 4-086-05-0497 Relay KL4001 for HOMAG

This is a bus terminal for Homag, Homag part number is 4086050497 or 4-086-05-0497.

Made from Beckhoff, model number is KL4001.

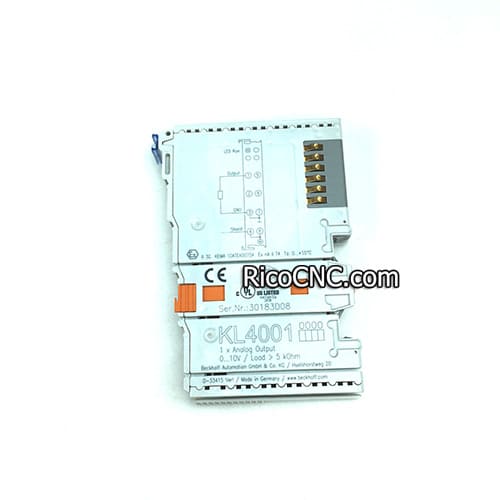

1-channel BUS TERMINAL.jpg

The KL4001 analog output terminal generates signals in the range from 0 to 10 V. The voltage is supplied to the process level with a resolution of 12 bits and is electrically isolated. The output channels of the Bus Terminal have a common ground potential. The KL4001 is particularly suitable for signals with electrically isolated ground potentials. The run LEDs give an indication of the data exchange with the Bus Coupler.

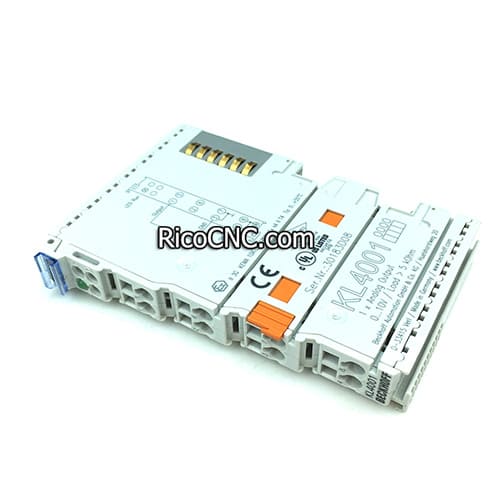

Beckhoff KL4001 .jpg

Beckhoff KL4001 PLC Module.jpg

BUS TERMINAL KL4001 OUT-1:0-10V.jpg

Beckhoff KL4001 specification:

Technical data	KL4001
Number of outputs	1
Power supply	via the K-bus
Signal voltage	0…10 V
Load	> 5 kΩ (short-circuit proof)
Output error	< ±0.1 % (relative to end value)
Resolution	12 bit
Conversion time	~ 1.5 ms
Electrical isolation	500 V (K-bus/signal voltage)
Current consumption power contacts	– (no power contacts)
Current consumption K-bus	typ. 75 mA
Bit width in the process image	output: 1 x 16 bit data (1 x 8 bit control/status optional)
Configuration	no address or configuration setting
Special features	potential-free output
Weight	approx. 85 g
Operating/storage temperature	-25…+60 °C/-40…+85 °C
Relative humidity	95 %, no condensation
Vibration/shock resistance	conforms to EN 60068-2-6/EN 60068-2-27
EMC immunity/emission	conforms to EN 61000-6-2/EN 61000-6-4
Protect. rating/installation pos.	IP20/variable
Pluggable wiring	for all KSxxxx Bus Terminals
Approvals/markings	CE, UL, ATEX, IECEx
Ex marking	ATEX:
	II 3 G Ex nA IIC T4 Gc
	IECEx:
	Ex ec IIC T4 Gc
