DOOSAN Turning Machining Center is an advanced CNC machine tool produced by Doosan Machine Tools in Korea, which is widely used in the field of precision parts machining, and is especially outstanding in complex machining such as turning, milling and drilling.

DOOSAN Turning Machining Center Product Series

The range of DOOSAN CNC-controlled universal turning machines includes: horizontal compact turning centers, horizontal high-perfomance turning centers, multi-tasking turning centers, horizontal multi-axis turning centers, horizontal twin-spindle turning centers.

Horizontal Compact

LEO 1600, Lynx 2100, 2100L, Lynx 2100G, Lynx 220, 220L, Lynx 220G super, Lynx 300

Horizontal High-performance

PUMA GT2100, PUMA GT2600, GT2600, PUMA GT3100, GT3100L, PUMA 2100, 2100L, PUMA 2100Y II, 2100LY II, PUMA 2600, 2600L, 2600/500, PUMA 2600Y II, 2600LY II, PUMA 3100, 3100L, 3100XL, 3100UL, PUMA 4100, 4100L, 4100XL, PUMA 5100, 5100L, 5100XL, PUMA 600, 600L, 600XL, PUMA 700, 700L, 700XL, PUMA 800, 800L, 800XL

Horizontal Multi-axis

PUMA TT1800SY, PUMA TT2500SY, PUMA TL2000, TL2000L, PUMA TL2500, TL2500L

Multi-tasking

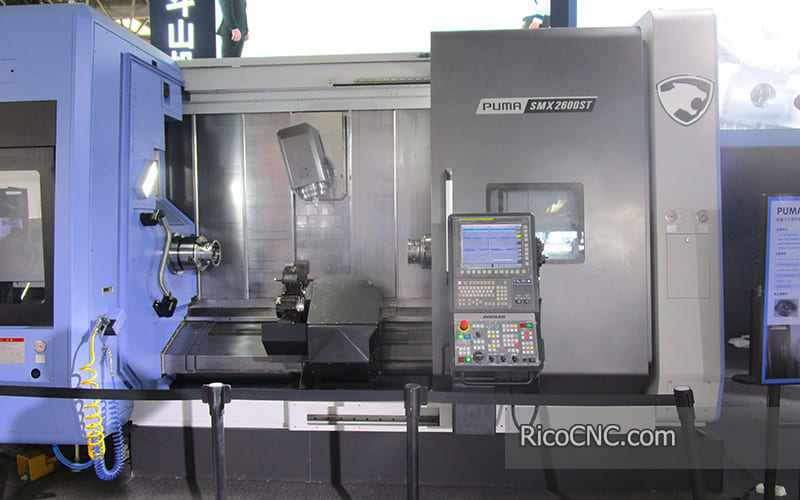

PUMA MX1600, MX1600/735, PUMA MX2100, MX2100L, PUMA MX2600T, PUMA SMX2600, PUMA SMX3100, 3100L

Horizontal Twin Spindle

PUMA TW2100, TW2100-GL130, TW2100-GL180, PUMA HT230T, HT230TG, PUMA H310T, QL300H, PUMA TW2600, TW2600-GL

DOOSAN Turning Machining Venters Main Accessiries

DOOSAN turning machining centers are mainly composed of the following accessories:

Basic parts: These include the bed, table and column. These parts constitute the main structure of the machining center and bear various forces and vibrations in the machining process, so they must have sufficient rigidity and stability

Spindle components: by the spindle box, spindle motor, spindle and main bearings and other components. Spindle is the cutting tool installation benchmark, its accuracy and rigidity has an important impact on the quality of machining

Rico supply Doosan Spindle and spare parts, such as:

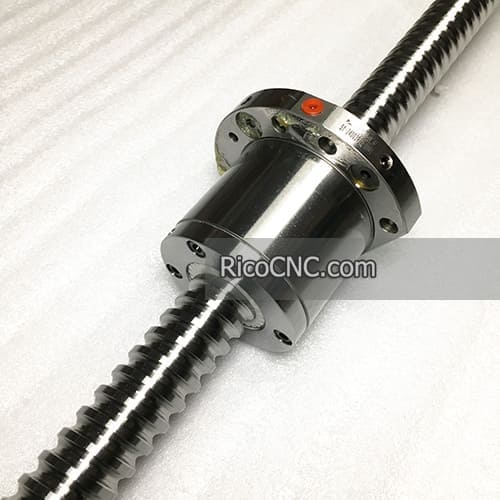

130510-00268  BALL SCREW;X1-AXIS       110912-00041A   R32-8K6-FSC-505-787-0.005

130510-00269  BALL SCREW;Y-AXIS        300418-00313    R32-10K5-FSC-400-750-0.005

130510-00270  BALL SCREW;Z1/B-AXIS     300418-00275A   R40-10K4-FSCC-1020-1365-0.008

130510-00697  BALL SCREW;X2 1          10912-00044B    R-32-10K3-FSC-330-590-0.005

130510-00271  BALL SCREW;Z2-AXIS       300418-00276A   R40-10K4-FSCC-1110-1455-0.008

L62422016A X-AXIS BALL SCREW 1R32-10T4-1FSDA-425-753-0.008 for PUMA 2100MS

Doosan X-axis Brake 130104-00123A IKB-08-12DS-DC24V

DAECHEONG Doosan Machine Tools 920602-00261-CS Push Rod Assy

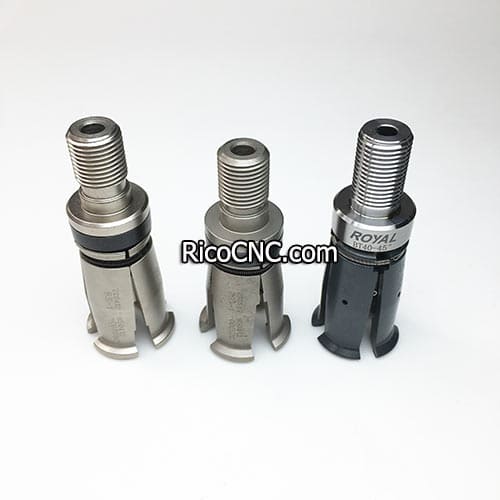

DOOSAN CNC grippers:

850412-00052 DIN40 CAT40 Gripper Tool Claw Collet Assy for Doosan Daewoo DNM DMC FFGDMC Machine

Collet Assembly Doosan DIN 40 Taper 850412-00308C 850412-00308D for Claw CMV HC MYNX NM VC Series Machine tools

Doosan Collet DIN50 850412-01228 R76628A for Doosan Daewoo DNM DMC FFGDMC Machine

Doosan Daewoo Machine Tool Claw BT40 850412-00678A for CMV MYNX NM Series

Doosan BT50 850412-00963A R76629 CNC Gripper

CNC system: including CNC device, programmable controller, servo drive system and panel operating system and other parts. The CNC system is the “brain” of the machining center, responsible for receiving operating instructions and controlling the movement of the machine components.

Doosan Control system:

RH10TD-30O Doosan AC Servo Motor 300508-00698A-CS

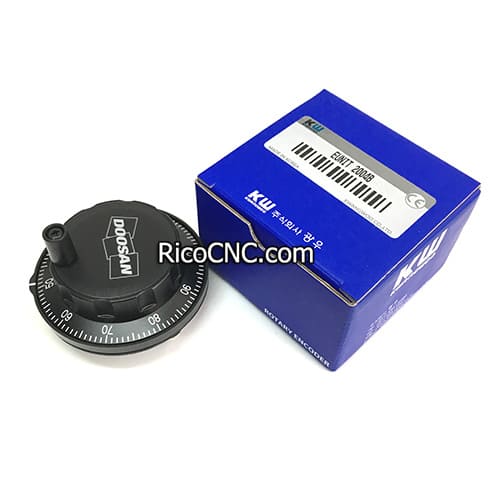

Kwangwoo Manual Encoder Wheel RIM-80-0100-BVA for DOOSAN Machines

Doosan 301411-00100B DN Sensor Touch for DN Machine

301417-00031 Safety Door Switch Doosan Machine Tool STP3A-537A024MC2363

GSBF02R12-502-MC1806 EUCHNER 094147 Limit Switch Position Switch Doosan ESWLM0059B

DOOSAN Servo Drive DVSC-TM-28C 300419-00036B Servo Drive

DOOSAN 300632-00183 Manual Pulse Generator RE46A1CD5

Doosan 300692-00126 MPG Manual Pulse Generator Hand Wheel

DOOSAN R30765A Parker D1VW001CNJWL Hydraulic Directional Solenoid Valve 24VDC

Automatic tool changer system: composed of tool magazine, robot and other components. The system can be completed in a short period of time tool replacement, improve machining efficiency

Doosan Tool pots/Pocket:

C42093782E BT40 Tool Pot for DOOSAN HC500II DAEWOO ADE-HC400

Doosan C37013042B-AY DIN40 Tool pocket MYNX Series DAEWOO Machine

DOOSAN BT50 tool pot for Daewoo Machine Centre

DOOSAN DIN50 tool pot for Doosan HP500 Horizontal Machine Centre

Auxiliary devices: including lubrication systems, cooling systems, chip removal devices, protective devices and so on. Although these devices are not directly involved in the cutting movement, but the machining efficiency, machining accuracy and reliability of the machining center plays a safeguarding role.

DOOSAN lubrication systems:

DOOSAN 800112-00328 Pressure Gauges Type 7 RF63Gly D731

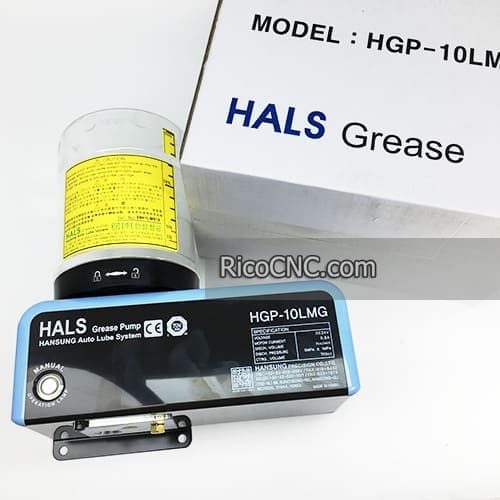

400916-00961A HALS HGP-10LMG GREASE Pump for DOOSAN Machine

HALS Lubricator Pump HMGP-303M External Control Fixed Quantity Oil Supply Pump

These accessories work together to make DOOSAN turning machining centers able to efficiently and accurately complete a variety of complex machining tasks.

DOOSAN Turning Machining Center Maintenance

Basic Requirements for Daily Maintenance

1. Cleaning Maintenance: Thoroughly clean the working area after daily operations, focusing on guide rails, spindles, and other critical parts to prevent debris buildup and ensure precision.

2. Lubrication Management: Regularly check the oil level and quality of the lubrication system. Replenish lubricants promptly for key components (e.g., spindles, guide rails, screws) to reduce mechanical wear.

3. Fastening & Electrical Inspection: Systematically inspect fastener tightness and electrical connections to prevent equipment failures caused by loosening or poor contact.

Key Steps for Periodic Maintenance

1. Machine Accuracy Calibration: Regularly check positioning, geometric, and cutting accuracy. Calibrate immediately if deviations are detected.

2. Electrical System Inspection: Examine wiring connections for overheating or short circuits. Clean contact points to ensure stable conductivity.

3. Cooling System Management: Monitor coolant levels, temperature, and filter conditions. Replace coolant as needed to prevent tool overheating.

4. Pneumatic System Check: Verify air pressure stability and pipeline integrity to maintain reliable clamping and tool-changing operations.

You can find DOOSAN Turning Machining Center Tools and Accessories in RicoCNC, please send your inquiry to us, we will try to support you.
