Brand New BECKHOFF KL2541 Stepper Motor Bus Terminal

• BECKHOFF KL2541 stepper motor terminal
• Brand New KL2541 stepper motor with incremental encoder
• Bus terminal, 1 digital stepper motor output
• 50 V DC, 5.0 A, incremental encoder
• Beckhoff terminal KL2541
• Beckhoff KL series stepper motor
• Beckhoff KL2541 bus terminal
• BECKHOFF stepper motor module KL2541
INQUIRY

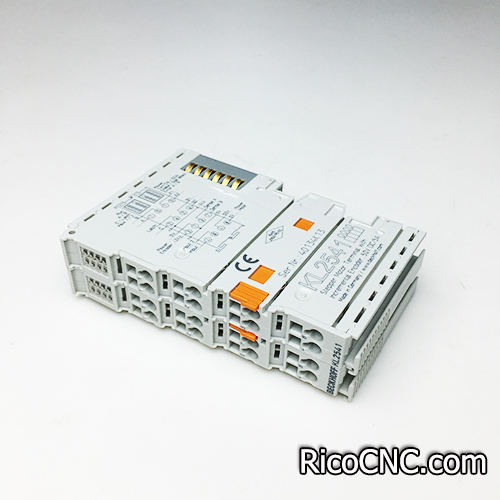

Beckhoff KL2541 bus terminal.jpg

Brand New BECKHOFF KL2541 Stepper Motor Bus Terminal

This module is BECKHOFF KL2541 stepper motor bus terminal.

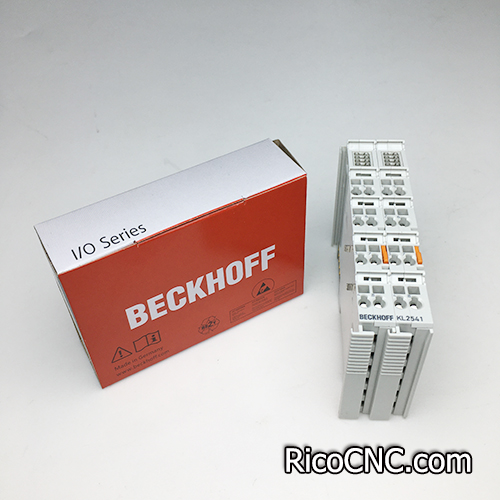

BECKHOFF KL2541.jpg

BECKHOFF stepper motor module KL2541.jpg

The KL2541 bus terminal is intended for stepper motors with a medium performance range. The PWM output stages cover a wide range of voltages and currents. Together with two inputs for limit switches, they are located in the Bus Terminal. The stepper motor terminal KL2541 can be adjusted to the motor and the application by changing just a few parameters. 64-fold micro-stepping ensures particularly quiet and precise motor operation. Together with a stepper motor, the KL2541 represents an inexpensive small servo axis.
KL2541 module.jpg

BECKHOFF KL2541 stepper motor terminal.jpg

Specification of Beckhoff KL2541:

Technical data	KL2541
Technology	compact drive technology
Number of channels	1
Number of outputs	1 x stepper motor, encoder input
Number of inputs	2 x end position, 1 x encoder
Connection technology	direct motor connection
Supply voltage electronics	24 V DC (via power contacts)
Supply voltage power	8…48 V DC (external)
Output current	max. 5.0 A
Encoder supply	24 V DC
Step frequency	max. 125,000 steps/s
Step pattern	full step, half step, up to 64-fold micro stepping
Current controller frequency	approx. 25 kHz
Resolution	approx. 5000 positions in typ. applications (per revolution)
