SMC ITV1050-31N2N4 1000 Size E P Electro Pneumatic Regulator

SMC ITV1050-31N2N4 1000 Size E P Electro Pneumatic Regulator

• ITV1050-31N2N4
• SMC Corporation ITV1050-31N2N4
• SMC E/P Regulator electro pneumatic
• SMC 1000 SIZE electro-pneumatic regulator
• SMC ITV1050-31N2N4 regulator
• SMC 1/4" Port regulator
INQUIRY

SMC ITV1050-31N2N4 1000 Sizer E/P Electro Pneumatic Regulator

This is a electro-Pneumatic Regulator, 1/4" Port, .005-0.9 MPa, IP65, 0-10 VDC, ITV Series, ITV1050-31N2N4.

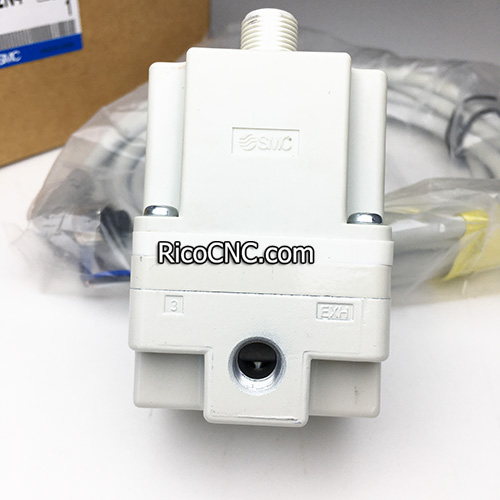

SMC ITV1050-31N2N4 regulator.jpg

Series ITV electro-pneumatic and electronic vacuum regulators control air/vacuum pressure step lessly in proportion to an electric signal. They are light weight in design with a bright and easy to read LED display. The monitor output is available either as analog output or switch output. The ITV series is IP65 equivalent.

SMC Corporation ITV1050-31N2N4.jpg

SMC Corporation ITV1050-31N2N4 OVERVIEW:

• Controls air pressure in proportion to an electric signal

• Available in MPa, kgf/cm², bar, PSI, and kPa units

• Pressure range of 0.005 to 0.9MPa

• Available port sizes 1/4, 3/8 and 1/2

• Mounting bracket option

• "Analog Output 4-20mA sinking type (not compatible with most North American analog input cards) For sourcing compatible type, contact SMC for information on -X256 option."

SMC 1000 SIZE electro-pneumatic regulator.jpg

Specification:

Model	10 (200 L/min [ANR])
Pressure Range	5 (0.005~0.9MPa)
Power Voltage	0 (24VDC)
Input Signal	3 (Voltage Style 0~10VDC)
Monitor Output	1 (Analog Output 1~5VDC)
Thread	N (NPT)
Port Size	2 [1/4 (1000,2000,3000)]
Accessory	None
Cable Connector	N (w/oCable Connector)
Pressure Display Unit	4 (PSI)
Options	None
