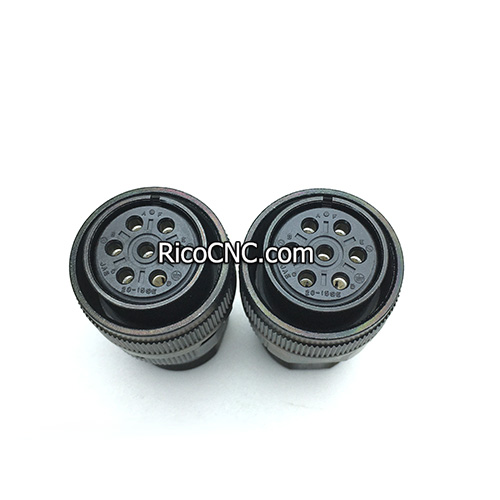

JAE 20-15SE JL04V-6A20-15SE-EB-R.jpg

JAE JL04V-6A20-15SE-EB-R 7 Position Circular Connector Plug Female Sockets Solder Cup



This JAE JL04V-2E20-15PE-B-R 7 (6 + PE) Position Circular Connector Plug, Female Sockets Solder Cup, Straight plug, TÜV, Waterproof (when mated) type, Standard Circular Connector Plug 7P CBL Sckt.

Circular Connectors.jpg

Straight plug connector.jpg

JL04V series Circular connectors features:

Approved by TÜV Rheinland

An authorized certifying organization of EU, as a product conforming to the connector standard EN61984 based on European safety standard EN60204-1.

Sequential connection ensures reliable link with protection circuit.

Earth terminal leading to metallic shell. First-to-make, last-to-break grounding contacts incorporated that connect with metallic shell to create protective earth circuit

Waterproof (mated condition) structure

Waterproof/ Dustproof of protection class IP67 prevents penetration of water, oil, dust

Waterproof independent receptacle available

3 type plugs

Plug is available in straight, angle and individual type

Polarization

Features on mating components to prevent incorrect mating

Pin insert/ Socket insert

For waterproof independent receptacle, Pin insert only is available.

For non-waterproof receptacle, Socket insert only is available.

Alternative insert positions

To prevent mis-mating to connector, there are insert rotating positions available




JAE JL04V-6A20-15SE-EB-R specification:

Part Number

JL04V-6A20-15SE-EB-R

Status

Active

Number of Positions

7 pos.

Rated Current

23 A

Rated Voltage (AC Vr.m.s.)

250 (Pollution degree: 3/ Over voltage category: III)

Waterproof/ Non-waterproof

Waterproof (when mated)

Contact Arrangement Code

20-15

Connector Type

Plug

Connector Style

Straight

Contact Type

Socket

Wire Termination Method

Soldering

Applicable Wire Size (AWG)

#12

Coupling Style

Threaded

Contact Size

#12

Shell Size

20

Contact Size X No. of Contacts

#12*7

Applicable Wire (Cross-sectional Area of Conductor) (mm2 max.)

3.5

Alternative Insert Position (deg.)

0

Material of Contact

Copper alloy

Finish of Contact in Connecting Area

Silver plating

Outer Shell Color

Black system interference color

Total Current Rating (A)

105.7

Contact Resistance (milliohm max.)

2

Dielectric Withstanding Voltage (VACr.m.s. 1minute)

2,000

Insulation Resistance (megaohm min. )

1,000

Operating Temperature Range (deg. C)

-55 Deg. C to +125 Deg. C

Applicable Accessory

JL04-2022CK(**)-R,JL04-2022CK(**)-CR-R



JAE Circular Connectors Applications:

Machine tools, Servomotors, Robots, Semiconductor Equipment, FA equipment, Industrial equipment, Rolling stock, Vessels, Telecommunications devices, Measurement equipment, Broadcast systems, Medical equipment, Computers and peripherals, and other electronic/ electric equipment.

JAE Circular Connectors.jpg

There are other types:

JL04V-2E20-15PE-B-R, JL04V-2E20-4PE-B-R, JL04V-6A18-12SE-EB-R, JL04V-6A20-4SE-EB-R, JL04V-2E10SL-3PE-B-R, JL04V-2E18-12PE-B-R, JL04V-2E24-11PE-B-R, JL04V-6A10SL-3SE-EB-R, JL04V-6A10SL-3SE-R, JL04V-6A32-17SE-EB-R, JL04V-8A18-12SE-EB-R, JL04HV-2E22-22PE-B-R, JL04V-2E18-10PE-B-R, JL04V-2E24-10PE(G)-B-R, JL04V-2E24-10PE-B-R, JL04V-2E32-17PE-B-R, JL04V-6A18-10SE-EB-R, JL04V-6A20-15SE-EB-R, JL04V-6A20-7SE-R, JL04V-6A22-22SE-EB-R, JL04V-6A24-11SE-EB-R, JL04V-8A20-15SE-EB-R
