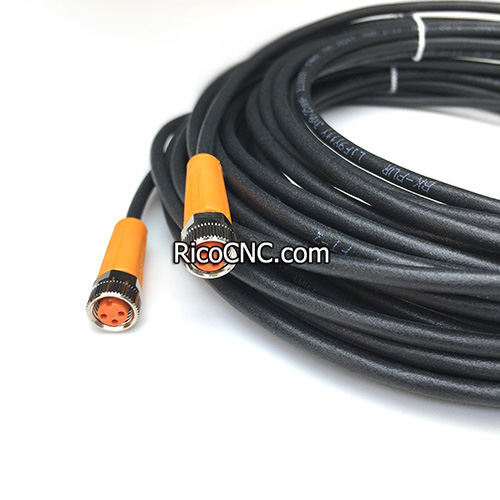

4-008-35-0224 Plug.jpg

4-008-35-0224 IFM EVC142 Plug 4008350224 for Homag Weeke BST 500 Edge Banding Machine



This is a IFM Female cordset EVC142, it is widely used for Homag Weeke BST500 Edge Banding Machine, Homag part number is 4-008-35-0224 or 4008350224.

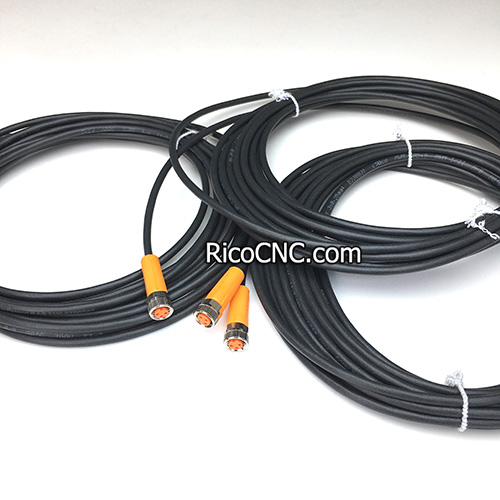

 4-008-35-0224 CONNECTING PLUG 3-POLIG M8X1.jpg

IFM Efector EVC142 4-008-35-0224 Features:

• Resistant to oils and coolants

• Permanent, reliable sealing even when mounted without tools

• High protection rating for the requirements of harsh industrial environments

• Vibration and shock resistant thanks to coupling ring with locking mechanism

• Mechanical end stop to protect the O-ring from destruction

 4-008-35-0224 FEMALE CONNECTOR .jpg

IFM plug 4-008-35-0224 specification:

Application

System

Free from silicone; Halogen-free; gold-plated contacts; Drag chain suitability

Free from silicone

yes

Electrical data

Operating voltage [V]

< 50 AC / < 60 DC

Protection class

III

Max. current load total [A]

3

Operating conditions

Ambient temperature [°C]

-25...90

Note on ambient temperature

cULus: ...80

Ambient temperature (moving) [°C]

-25...90

Note on ambient temperature (moving)

cULus: ...80

Protection

IP 65; IP 67; IP 68; IP 69K

Mechanical data

Weight [g]

105.7

Dimensions [mm]

10 x 10 x 31

Material

housing: TPU (urethane) orange; sealing: FKM

Material nut

brass, nickel-plated

Drag chain suitability

yes

Drag chain suitability

Bending radius for flexible applications

min. 10 x cable diameter

Travel speed

max. 3.3 m/s for a horizontal travel length of 5 m and max. acceleration of 5 m/s²

Bending cycles

> 5 Mio.

Torsional strain

± 180 °/m

Remarks

Pack quantity

1 pcs.

Electrical connection


Cable: 5 m, PUR, Halogen-free, black, Ø 3.7 mm; 3 x 0.25 mm² (32 x Ø 0.1 mm )

Electrical connection - Socket

Connection

Connector: 1 x M8, straight; coding: A; Locking: brass, nickel-plated; Contacts: gold-plated; Tightening torque: 0.3...0.5 Nm

 IFM Efector EVC142.jpg

Rico can supply other connector and plug from IFM.

 Homag edge banding plug.jpg

RicoCNC also can supply other spare parts for Biesse, Homag, Weeke, and other common brands in CNC industries.

 Plug M8-3-AG3X0.25 with cable 5m Homag.jpg

Please contact us for more information.
