New Original Autonics PSN17-5DN2U Inductive Proximity Sensor

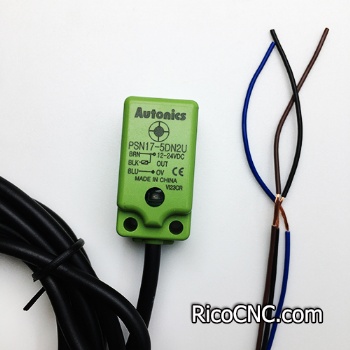

This brick-shaped switch is Autonics PSN series proximity sensor with model number PSN17-5DN2U.
Autonics PSN17-5DN2U .jpg

Main Features of Autonics PSN17-5DN2U sensors
● Improved the noise resistance with dedicated IC
● Built-in reverse polarity protection circuit (DC 3-wire type)
● Built-in surge protection circuit
● Built-in overcurrent protection circuit (DC type)
● Long life cycle and high reliability
● Red LED status indication
● Protection structure IP67(IEC standard)
Autonics PSN17-5DN2U proximity sensor.jpg

Autonics is a leading provider of automation solutions from South Korea. Their core products include various sensors, controllers, motion devices, measuring equipment, laser marking systems, connection equipment, and more.
Autonics proximity sensor .jpg

Detailed specification of Autonics PSN17-5DN2U proximity sensors:

Wire type and power

DC 3-wire type 12-24VDC

Sensing side size

Frame size 17mm

Sensing distance

5mm

Standard sensing target

18×18×1mm(iron)

Response frequency

700Hz

Current specification

Current consumption: Max. 10mA

Control output

NPN Normally Closed

Sensing type

Upper sensing type

Material

Heat-resistant ABS

Protection structure

IP67

Environment_Ambient temperature

-25 to 70℃, storage: -30 to 80℃

Environment_Ambient humidity

35 to 95% RH, storage: 35 to 95% RH

Hysteresis(distance)

Max. 10% of sensing distance

Weight

≈ 62g (≈ 83g)

Autonics PSN17-5DN2U sensor .jpg

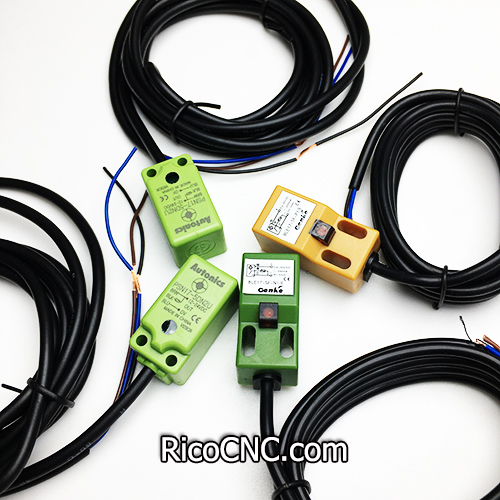

There are various models options to choose from
PSE17-5DN
PSE17-5DP
PSE17-5DN2
PSN17-5DN
PSN17-5DP
PSN17-5DNU
PSN17-5DN2U
PSN17-8DN
PSN17-8DP
PSN17-8DN2
PSN17-8DNU
PSE17-5DP2
Autonics PSN17 sensor .jpg

RicoCNC focuses on providing premium CNC parts for the world market, owning many years of experience in CNC industries and have shipped CNC machine parts to over 100 countries. If you have any needs, please feel free to contact me.
