4-014-12-0100 HSK-F63 Tool Holder Chuck 4014120100 for Homag Weeke CNC

  • • Homag 4-014-12-0100 / 4014120100
  • • Replacement for LEUCO 80333021 tool holder
  • • Replacement for LEUCO 173293/9 collet chuck
  • • Leitz 037412, 037924 HSKF63 tool holder
  • • Model: HSK63F- EOC25/SYOZ25-80 Collet Chuck
  • • SYIC-31025F HSK63FxEOC25-80 Techniks
  • • HSK63F shank chuck for precision collet EOC25/SYOZ25
  • • For Homag, Weeke, Anderson, CR Onsrud, IMA, HOLZ-HER, SCM, CMS CNC
  • INQUIRY

Homag 4-014-12-0100.jpg

4-014-12-0100 HSK-F63 Tool Holder Chuck 4014120100 for Homag Weeke CNC

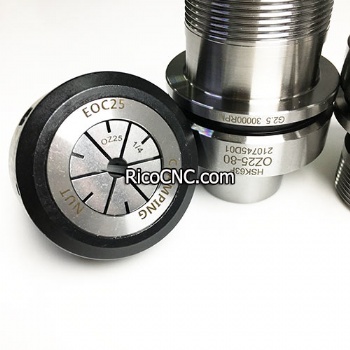

This is HSK63F collet chuck HSK type "F" tool holder for EOC25/SYOZ25 precision collet. Hollow taper shank as per DIN 69893. Homag Weeke No. 4-014-12-0100 (4014120100), LEUCO 80333021, LEUCO 173293/9, Leitz 037412, 037924, SYIC-31025F HSK63FxEOC25-80 Techniks, Klein, IMS HSKF63 tool holders are replaceable.
HSK63FxEOC25-80 Techniks.jpg

Exact concentric running through hardened, ground and double slotted collets. Easy handling as loosening the ball bearing collet nut automatically opens the collet.

Balanced lock nut with sleeve bearing. Threaded nut DIN 6388 (EOC25/SYOZ25/RDO35/462E).
Weeke 4014120100.jpg

Feature

Value

Ø d1 = Adapter size on the tool side

2-25 [mm]

Ø d = Adapter size on the machine side

HSK 63F [mm]

Ø D = Diameter

60 [mm]

Norm number = Norm number

DIN 69893

Collet chucks according to DIN 6388

462E

Collet standard

EOC25/SYOZ25/RDO35

Dimension

HSK 63Fx2-25 [mm]

Weight = Weight

1.3 [kg]

Machine/Type

Homag, IMA from 01/95, Weeke from 03/98,   HOLZ-HER, SCM, CMS, Anderson, CR Onsrud, IMA, Masterwood

Remarks

x=18mm

Leitz 037412.jpg

Central hexagonal low profile for easy tool clamping through a c-spanner.
For CNC router machines: Biesse, SCM, Masterwood, Homag, Weeke, Anderson, Morbidelli, IMA, Multicam, Vitap, Weinig, Essetre, Greda, Felder, Bulleri and Busellato, ....
Leitz 037924 HSK F63 tool holder.jpg

SYOZ25 collets and HSK63F locking fixture also are available here.
LEUCO 80333021 tool holder.jpg

RicoCNC supplies a range of CNC spare parts and tools, such as CNC tool holders, CNC tool clips, CNC tooling systems, etc. If any needs of CNC and woodworking machine parts, welcome your inquiry.
LEUCO 173293 collet chuck.jpg
