SGMGH-09ACA61 Industrial Servo Motor Yaskawa 5.39N.m 200V AC Servo Motor

SGMGH-09ACA61 Industrial Servo Motor Yaskawa 5.39N.m 200V AC Servo Motor

• AC motors SGMGH09ACA61
• YASKAWA SGMGH-09ACA61
• 200V Three-phase Sigma II servo systems
• Motor servo SGMGH
• Sigma 2 motor
• CNC servo motors
• Servo motor 200V 850W
• SGMGH Sigma II servo system
INQUIRY

YASKAWA SGMGH-09ACA61.jpg

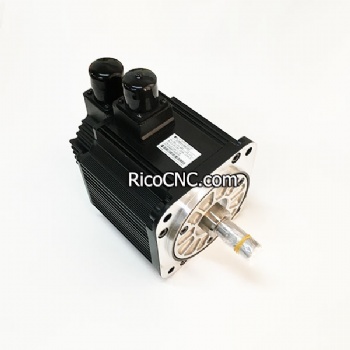

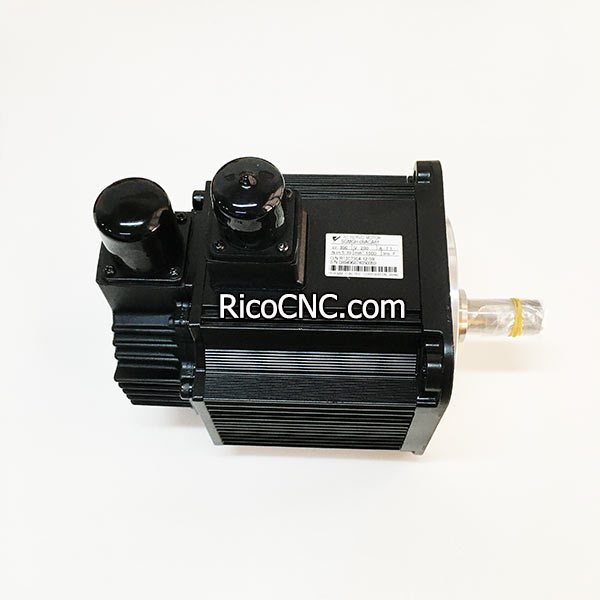

SGMGH-09ACA61 Industrial Servo Motor Yaskawa 5.39N.m 200V AC Servo Motor

SGMGH-09ACA61 Series Information
• Small Sized Motor
• High Torque to Inertia Ratio
• Up to 3000rpm Maximum
• Optional Built in Holding Brake
• UL; cUL Recognized; CE Compliance
AC motors SGMGH09ACA61.jpg

Yaskawa general purpose SGMGH Servomotors are designed to be compatible with previous generation G series motors. These motors offer ten types of rated outputs ranging from 0.79 to 1988in.lb of peak torque.
Sigma 2 motor.jpg

SGMGH-09ACA61 Specifications:

Item Number:	SGMGH-09ACA61
Brand:	Yaskawa
Item Category:	Motors
Subcategory:	Servo
Series:	SGMGH
Mfg. Product Series:	Sigma 2
kW:	0.85 KiloWatts
Voltage:	200 VAC
Servomotor Type:	General Purpose
Rated Speed:	1,500 RPM
Max Speed:	3,000 RPM
Mounting Type:	Flange Mount
Encoder Type:	Incremental
Encoder Bit Resolution:	17 BIT
Constant Torque (Nm):	5.39
Peak Torque (Nm):	13.8
Constant Torque (Oz-In):	768
Peak Torque (Oz-In):	1,952
Constant Torque (Lb-In):	48
Peak Torque (Lb-In):	122
Brake:	No
Shaft Seal:	No
IP Rating:	IP67
Approvals:	UL; CE; UL Recognized
H x W x D:	8.62 in x 5.12 in x 5.12 in
Net Weight:	17 lb 10 oz
Gross Weight:	17 lb 10 oz

200V Three-phase Sigma II servo systems.jpg

Applications for YASKAWA SGMGH-09ACA61 servo motors:
Given their characteristic of accurate positioning, servo motors have a wide range of uses in applications such as industrial robots and precision machinery. Application examples include the following:

• Industrial robot joints
• Humanoid robot joints
• Equipment control in food processing machines
• Equipment control in packaging machines
• Belt drives in conveyor systems
• Automatic doors in trains
• X-Y tables used in LCD and semiconductor inspection machines
• Presses/roll feeders
• Rotating stages for machine tools or inspection systems
• Control of presses
• Control of bonding machines
• Control of plastic molding machines
• Control of amusement machines
• Radio control and other hobby applications
• Coating or vapor deposition machines
• Spin cleaning machines for LCDs and semiconductors
Servo motor 200V 850W.jpg

RicoCNC can supply both servo drive and servo motors with many brands such as Mitsubishi, ToAuto, Delta, Panasonic, Fuji, etc.
Please contact us if any inquires!
