Homag 4011041264 4-011-04-1264 AVENTICS 0821302732 Pressure Regulator

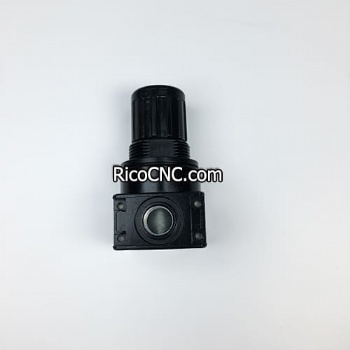

This is original AVENTICS 0821302732 Pressure regulator, Series NL1-RGS, NL1-G1/4 0,2-6 BAR R987062415. It can be used on Homag woodworking machines. Homag part number is 4011041264 or 4-011-04-1264.
Technical data of AVENTICS 0821302732 pressure regulator:
Model | 0821302732 |
Function | standard pressure regulator |
port | g 1/4 |
pressure gauge | without pressure gauge |
regulation range min. | 0.2 bar |
working pressure min. | 0.5 bar |
min. ambient temperature | -10 °c |
activation | mechanical |
regulator type | can be assembled into blocks |
Medium | compressed air, neutral gases |
Weight | 0.24 kg |
seal material | acrylonitrile butadiene rubber |
parts | pressure regulator |
nominal flow qn | 1000 l/min |
mounting orientation | any |
regulation range max. | 6 bar |
working pressure max | 16 bar |
max. ambient temperature | 60 °c |
regulator function | with relieving air exhaust |
pressure supply | single |
recommended pre-filtering | 5 µm |
Housing Material | die cast zinc |
Other models of AVENTICS pressure regulator for Homag machines is available:
RicoCNC can offer a range of Homag woodworking machine accessories.
If you are looking for spare parts for Homag machines, please don’t hesitate to contact us!
