AVENTICS 0822396209 Compact cylinder Series KPZ

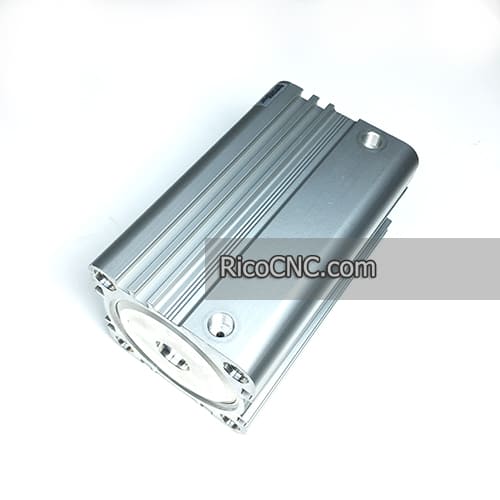

This is Aventics compact cylinder, series KPZ, KPZ-DA-063-0080-004122411000000-B, the model number is 0822396209.
Specifications of AVENTICS 0822396209 Compact cylinder Series KPZ:
| Standards | NFE 49004 |
| Piston Ø | 63 mm |
| Stroke | 80 mm |
| Functional principle | Double-acting |
| Cushioning | Elastic cushioning |
| Magnetic piston | Piston with magnet |
| Environmental requirements | Industry standard, ATEX optional |
| Certificates | ATEX optional |
| Piston rod | single |
| Scraper | Standard industrial scraper |
| Pressure for determining piston forces | 6,3 bar |
| Retracting piston force | 1837 N |
| Extracting piston force | 1964 N |
| Min. ambient temperature | -20 °C |
| Max. ambient temperature | 80 °C |
| Working pressure min. | 0.6 bar |
| Working pressure max | 10 bar |
| Ports | G 1/8 |
| Piston rod thread | M12x1,25 |
| Impact energy | 1.3 J |
| Stroke max. | 300 mm |
| Medium | Compressed air |
The AVENTICS Series KPZ is a compact cylinders based on the widely used standard NFE 49 004. It offer a wide variety of variants and are suitable for a multitude of applications thanks to their sizing.
AVENTICS 0822396209 Compact cylinder Series KPZ Features:
According to NFE 49-004
Ø 16 mm ... 100 mm
Max. stroke: 500 mm
With integrated sensor slot
Optional: through (hollow) piston rod, non-rotating (via piston rod or front plate), multi-position variant, heat resistant, ATEX
