In woodworking fields, CNC tool holders (collet chuck, tool holder cone, toolholder) are one of the common CNC woodworking spare parts. They are used for holding router bits. The tool holder with the router bit can be stored in the tool magazine. To some degree, this increases the working efficiency of the CNC spindle. However, as a supplier, we often meet customers who are confused when purchasing tool holders, such as ISO30 ER32 45L Tool Holders and NBT30-ER32-60L tool holders. Today, we will share the differences between ISO30 tool holders and NBT tool holders, hoping it will be helpful for your purchases.

ISO30 Tool Holder Application:

The ISO30-ER32-45L Tool Holder is commonly used on most woodworking tool-changer CNC routers, such as CNT, Biesse, FMT, DMS, Masterwood, Flexicam, Shop Sabre, Techno, CNT Motion, CR Onsrud, NEW CNC, Northwood, Omnitech, Precix, Quintax, Ritter, Routech, SCM, Shoda, Shopbot, Thermwood, Weeke, Quintax, and Chinese CNC router machining centers like Excitech, QuickCNC, StyleCNC, Omni-CNC, etc.

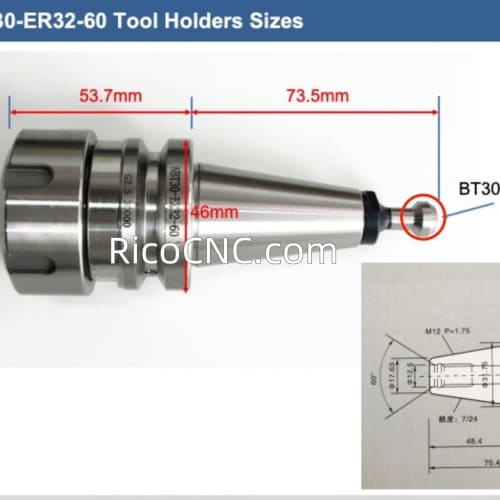

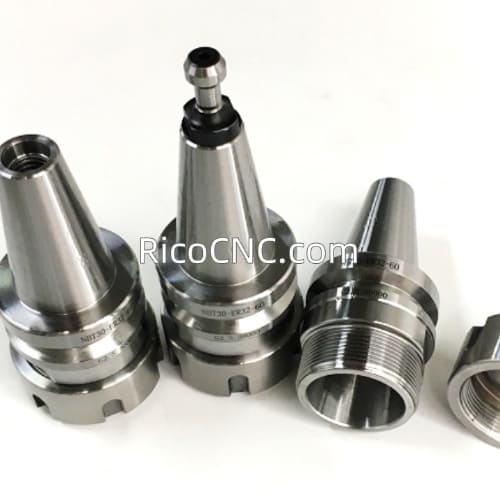

NBT30-ER32-60L Tool Holder Application:

The NBT30 endmill tool holder is widely used on CNC router machines and CNC milling machines. You can easily find it on auto tool-changer CNC routers like the Laguna Smart Shop 2, etc.

Pull Stud:

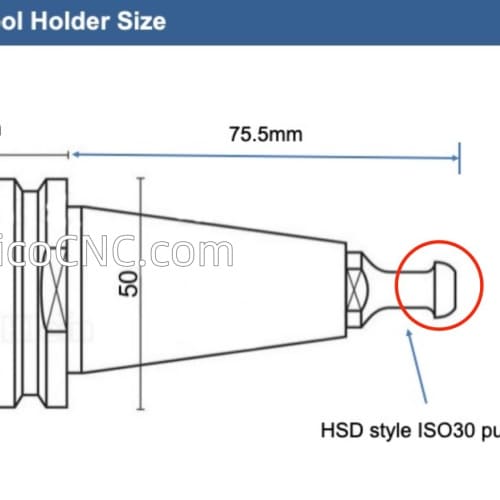

The ISO30-ER32-45L Tool Holder uses an HSD-specific pull stud.

The NBT30-ER32-60 Tool Holder uses a BT30-45-degree pull stud.

Keyway:

ISO30-ER32-45L tool holders have keyways.

NBT30-ER32-60L tool holders have no keyways. The NBT30-ER32-60L is a "Without Drive Slots" tool holder, also referred to as a Non-keyway BT30 tool holder cone, NBT30 collet chuck, BT30 tool holder without keyway, or BT30 tool holder without drive slots. Generally, CNC tool holder cones without keyways offer better accuracy and balance during high-speed rotation.

Flange Thickness:

The NBT30-ER32-60L tool holder flange is thicker than the ISO30-ER32-45L tool holder flange.

Tool Forks:

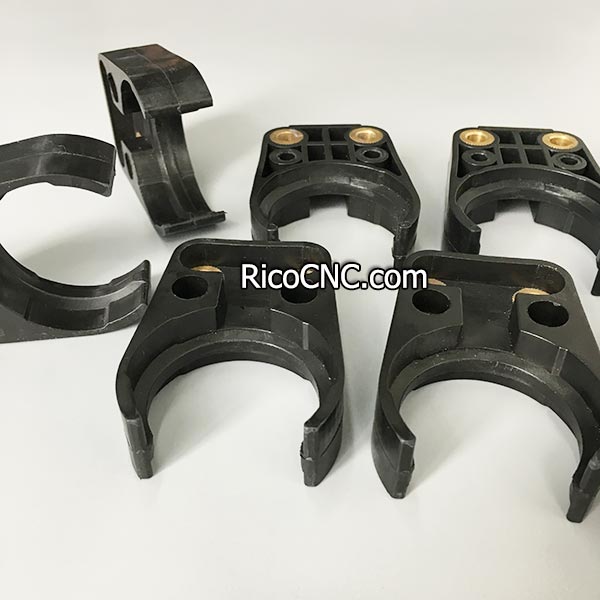

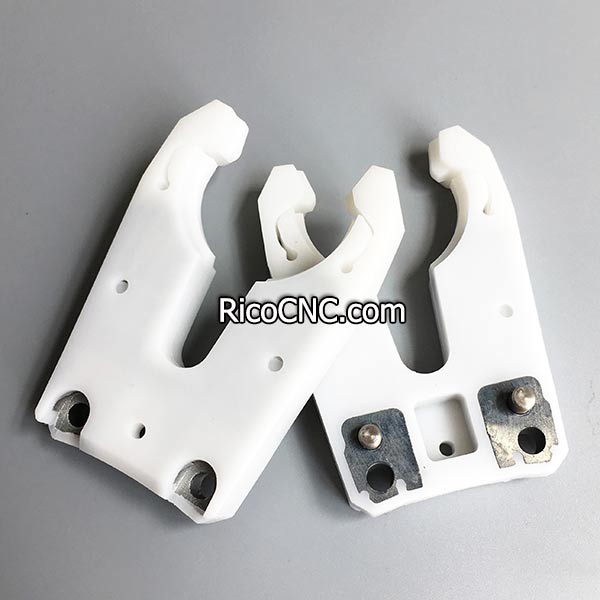

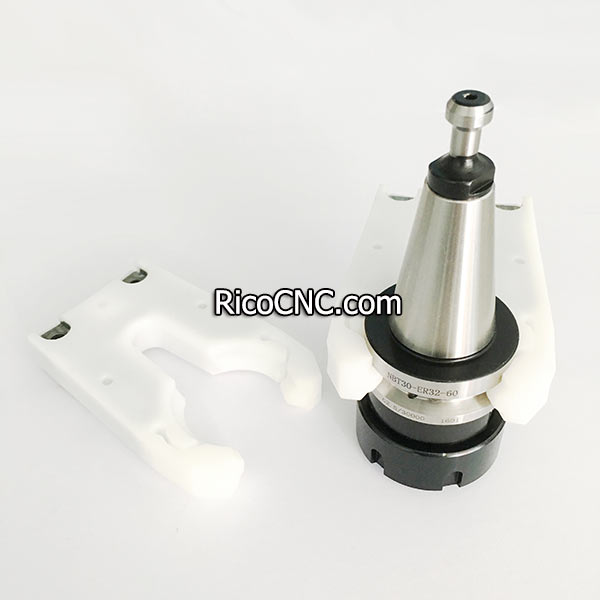

NBT30-ER32-60L tool holders typically pair with Black BT30 Tool Holder Forks, white BT30 tool fork, etc.

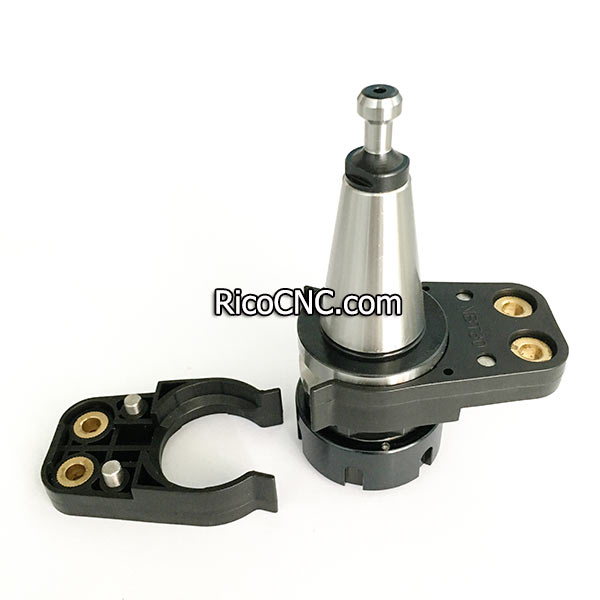

ISO30-ER32-45L tool holders usually work with Biesse ISO30 tool forks, Black ISO30-CL Tool Holder Forks, etc.

RicoCNC not only offers tool holders but also supplies a series of tool pots, ATC spindles, CNC grippers, and other products in the woodworking field. If you need any of these, please feel free to contact us.
