10.01.12.00228 140x115mm Bottom Suction Plates VCSP-U 140x115x16.5 VCBL-K1

  • • 140x115mm bottom vacuum pads with iron strips
  • • Schmalz 10.01.12.00228 bottom suction plates
  • • VCSP-U 140x115x16.5 VCBL-K1
  • • Rubber seal for vacuum block bottom for VCBL K1
  • • Replaceable suction plate bottom
  • • Dimensions (L x W): 140 x 115 mm
  • • Height H: 16.5 mm
  • • Vacuum block VCBL-K1 bottom cover
  • INQUIRY


10.01.12.00228 140x115mm Bottom Suction Plates VCSP-U 140x115x16.5 VCBL-K1

This bottom suction plates, Schmalz No.: 10.01.12.00228, is the 140x115mm replacement rubber seal for VCBL-K1 vacuum pod blocks. Work with a hose-free vacuum clamping system for CNC machining centers.

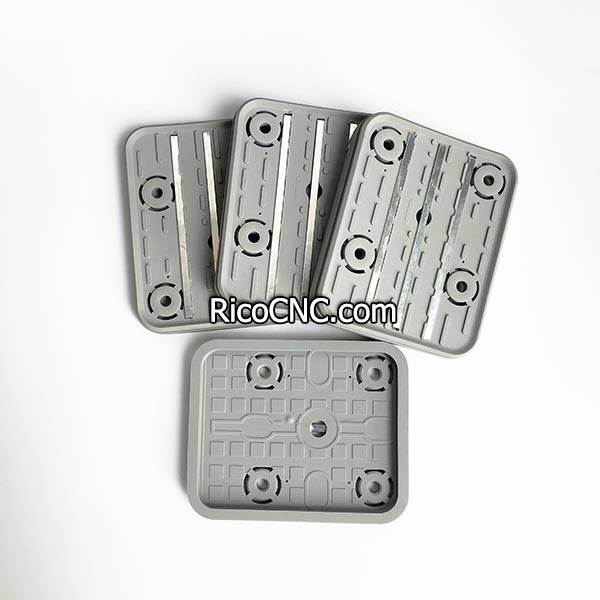

bottom suction pad.jpg

The replaceable suction plate bottom pad fits for vacuum blocks VCBL-K1 50mm pods:
10.01.12.00210, 10.01.12.00211, 10.01.12.00230, 10.01.12.00275, 10.01.12.00369, 10.01.12.00370, 10.01.12.00371, 10.01.12.00378, 10.01.12.00379, 10.01.12.00497, 10.01.12.00769, 10.01.12.00770
VCSP-U 140x115x16.5.jpg

VCSP-U 140x115x16.5 VCBL-K1 Rubber Seal Features:
Dimensions (L x W): 140 x 115 mm
Height H: 16.5 mm
For: Vacuum block VCBL-K1, 1-circuit console
Bottom suction plate with iron guide strips
lower rubber gasket.jpg

Lower CNC vacuum rubber gasket dimensions 140 x 115 used in HOMAG, Weeke, IMA, Masterwood, Felder, HolzHer, Reichenbacher, Busellato, Morbidelli machining centers, equipped with a Schmalz VCBL single-beam table.
bottom suction plates.jpg

It is easy to replace damaged or worn suction plates with the spare of vacuum suction plates.

vacuum block bottom pad.jpg

RicoCNC supplies a range of high quality spare parts of CNC vacuum pods and rubber pads, it is necessary for CNC owners to keep some vacuum suction parts as replacements.

VCBL K1 140x115mm.jpg

Welcome your inquiry.
