4-035-01-0601 Homag 4035010601 Aventics 0822334504 Pneumatic Cylinder for PTP Machining Center Tool Magazine

4-035-01-0601 Homag 4035010601 Aventics 0822334504 Pneumatic Cylinder for PTP Machining Center Tool Magazine

• AVENTICS 0822334504 Profile cylinder
• PRA series (MNI-DA-25-0080-D-31-01-1-00-000-00)
• Aventics pneumatic cylinder 0822334504
• Diameter=25mm stroke=80mm
• AVENTICS pneumatic profile cylinder
• Homag 4-035-01-0601 pneumatic cylinder
• Rexroth PRA ISO profile cylinder
• 4035010601 pusher lifting cylinder
INQUIRY

4-035-01-0601 Homag 4035010601 Aventics 0822334504 Pneumatic Cylinder for PTP Machining Center Tool Magazine

This is Aventics 0822334504 profile cylinder, PRA series (MNI-DA-25-0080-D-31-01-1-00-000-00), 25mm Bore, 80mm Stroke.

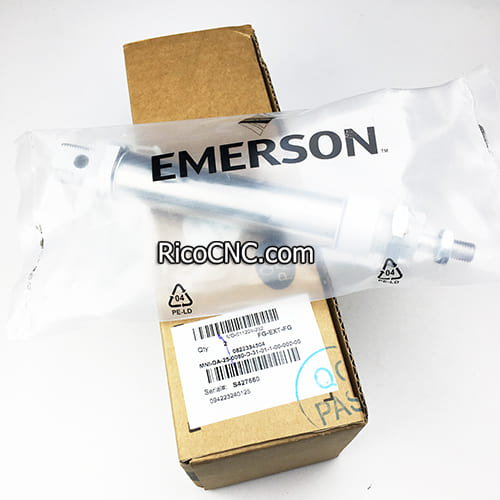

4035010601 .jpg

This AVENTICS pneumatic profile cylinder can be used on Homag edgebander machine, Homag part number 4035010601 or 4-035-01-0601.

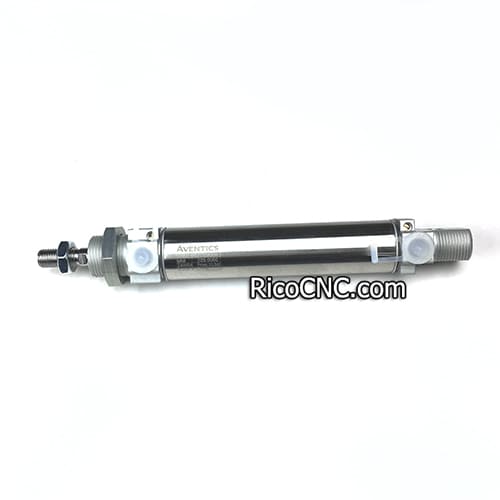

4035010601 pusher lifting cylinder.jpg

Description
Series	MNI	Series MNI
Version	DA	Double acting
Piston diameter	25	Diameter 25
Stroke	0080	Stroke in mm
Cushioning	D	Cushioning: pneumatically, adjustable
Piston	31	Piston with magnet ring
Piston rod	01	Single
Sealings	1	Standard PUR
Holding unit	00	Cylinder without holding unit
Piston rod extension	000	Without piston rod extension
Protection class	00	Without protection class

RicoCNC also can supply other models such as: 0822123001, 0822123002, 0822123003, 0822123004, 0822123005, 0822123006, 0822123007, 0822123008, 0822123009, 0822123010, 0822123011, 0822332504, 0822350003, 0822122004.

Homag 4-035-01-0601 pneumatic cylinder.jpg
