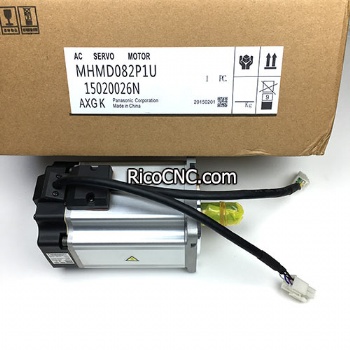

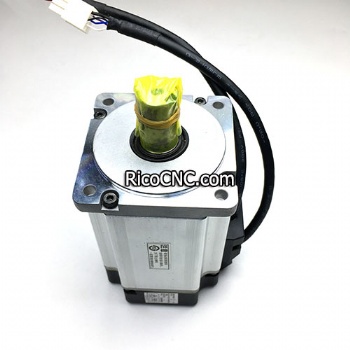

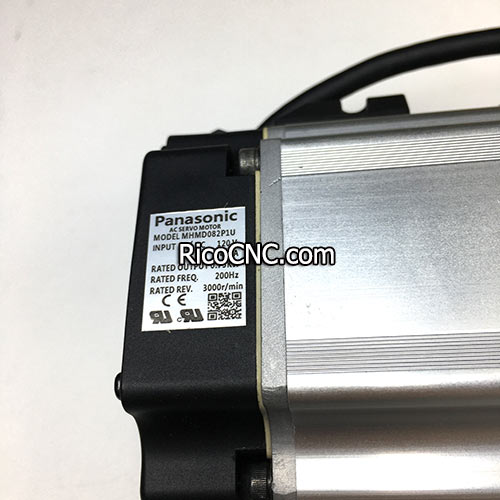

Panasonic MHMD082P1U AC Servo Motor 0.75kw Incremental Encoder Motor


This servo motor is made by Panasonic Industrial Automation Sales, model number is MHMD082P1U. AC Motor Servomotor 3000 RPM 750W Incremental 200VAC. This Motor MHMD082P1U is always with Driver MCDHT3520E02.

Driver MCDHT3520E02.jpg

MHMD082P1U Panasonic Servo Motor is Minas A4 series with wide output range from 50W to 5kW, high speed, high functionality AC servo drivers and motors. Thanks to the adoption of a  new powerful CPU. A4 series now realize velocity response frequency of 1kHz and contribute to the development of a high speed machine and drastic shortening of tact time.

Incremental Encoder Motor 200V.jpg

Standard line-up includes full closed control and auto-gain tuning function and the motors with 2500P/r incremental encoder. And 17 bit absolute/incremental encoder. A4 series also improved the user friendliness by offering a console which enables you to monitor the rotational speed display, set up parameters.

MHMD082P1U SERIES A4 AC SERVO MOTOR.jpg

MHMU082P1U servomotor Specification:

TYPEDESCRIPTION
CategoryMotors, Solenoids, Driver Boards/Modules
Motors - AC, DC
MfrPanasonic Industrial Automation Sales
SeriesMINAS A4
PackageBulk
Product StatusObsolete
TypeAC Motor
FunctionServomotor
Motor Type-
Voltage - Rated200VAC
RPM3000 RPM
Torque - Rated (oz-in / mNm)339.9 / 2400
Power - Rated750W
Encoder TypeIncremental
Size / DimensionSquare - 3.150" x 3.150" (80.00mm x 80.00mm)
Diameter - Shaft0.748" (19.00mm)
Length - Shaft and Bearing1.378" (35.00mm)
Mounting Hole Spacing3.543" (90.00mm)
Termination StyleWire Leads
FeaturesKey, Oil Seal
Gear Reduction Ratio-
Torque - Max Momentary (oz-in / mNm)1005 / 7100
Operating Temperature0°C ~ 40°C
Approval AgencyCE, CSA, cULus, TUV, UL
Weight5.5 lbs (2.5 kg)
Base Product NumberMHMD082

MHMD082P1U Panasonic Servo Motor.jpg

RicoCNC also can supply other brands CNC motor and drivers such as:

Mitsubishi Servo, ToAuto Servo, Servo Power Transformer, Delta Servo Kits, Yaskawa Servo, Panasonic Servo, Fuji Servo, Sewing Machine Servo, ASDA-A2 Series, ASDA-B2 Series, ASDA-A Series.

Panasonic Servo Motor Mhmd082P1U Internal Position Control.jpg

If any need of CNC machine parts, welcome to contact us.

SERVOMOTOR 3000 RPM 200V.jpg
