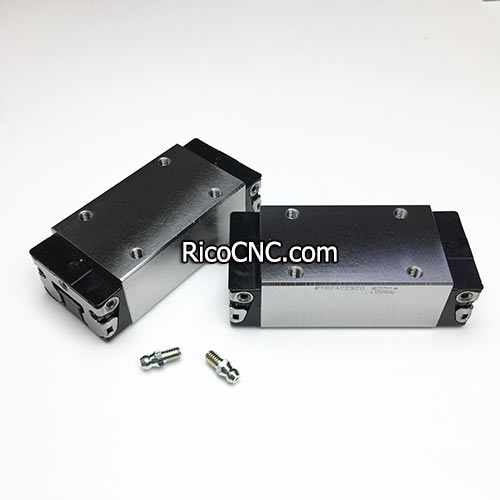

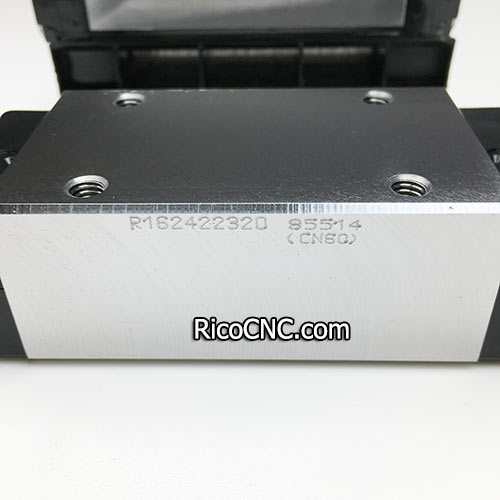

REXROTH R162422320.jpg

Bosch Rexroth R162422320 Linear Motion Runner Block Linear Bearing

Bosch Rexroth Ball Rail Systems.jpg

R162422320 ball runner block is highly precise and characterized by the following product features:

•Size 25

•Format SLH: Width = slimline, length = long, height = high

•Runner block body made of carbon steel CS

•Preload class C2: Medium preload

•Accuracy class H: High

•Without ball chain

•With initial lubrication and preservation

•Bearing grease Dynalub 510

•Without attachment element, left (reference edge in front)

•Without attachment element, right (reference edge in front)

•Straight lube connection loosely attached.

•Runner block body as standard version

•Overall length of the runner block= 107,9 mm

Ball runner block.jpg

Interchangeability:

The runner blocks and the guide rails can be combined as desired within each accuracy class.

Area of application:

For restricted space in transverse direction and high rigidity requirements

Higher rigidity than SLS

Significantly reduced frictional oscillations and low friction level, particularly under external load

Maximum precision

Patented entry zone increases the travel accuracy up to a factor of six

Bosch Rexroth Linear Motion.jpg

The Model List of can be replaced (Same Size,Different Accuracy Class and Preload):

Size

Accuracy

Part numbers for runner blocks

class

up to approx.

Preload

Preload

Preload


10 um clearance

0.02 C

0.08 C

0.13 C

25

P

-

R162421220

R162422220

R162423220

H

R162429320

R162421320

R162422320

-

N

R162429420

R162421420

R162422420

-

REXROTH Runner block linear bearing.jpg

RicoCNC supplies a range of linear guide block and rails brands such as Rexroth, INA, THK, HIWIN, PMI, ABBA, STAF, etc. All are original motion products.


RicoCNC also can supply wide range of cnc spare parts, CNC cutter bits, and CNC machines.

Carbon steel R162422320.jpg

Welcome to contact us if any inquires!

Slimline High Ball Carriage.jpg
