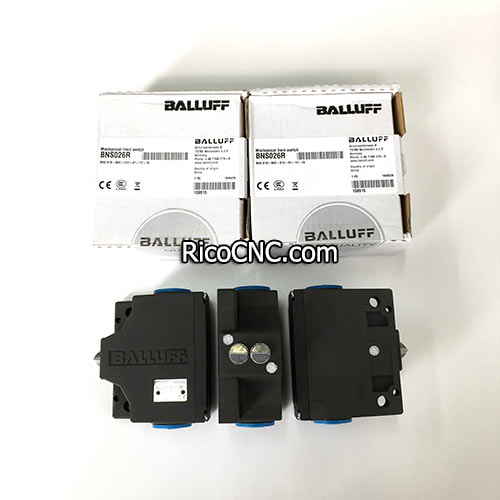

BNS 819-B02-D12-61-12-10.jpg

Balluff BNS026R BNS 819-B02-D12-61-12-10 Mechanical Multiple Position Limit Switches

This is Balluff mechanical limit switch order number is BNS026R, type code is BNS 819-B02-D12-61-12-10.

This BNS026R Switch has many advantages:
1. Mechanical row-position counters with up to 16 switching points are the classics of automation.
2. The switching process is carried out by a telescopic ram. This ram is used to connect a mechanical switching element in a separate sealed chamber.
3. The optimal choice of ram shape for the application in combination with our cams guarantees a long service life.

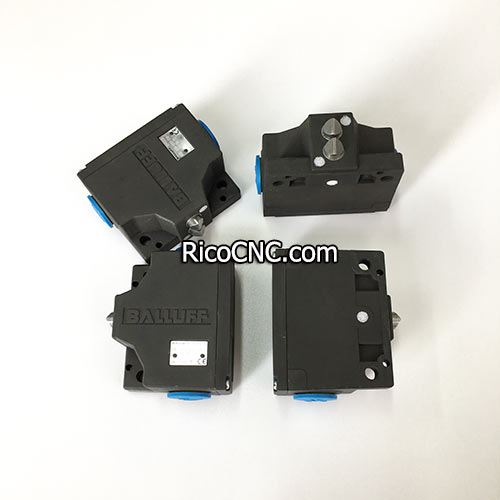

Balluff BNS026R.jpg

Balluff BNS026R BNS 819-B02-D12-61-12-10 Specification:

Dimension

79 x 36 x 63 mm

Housing   material

Aluminum, Anodized

Number   of switching positions

2x Chisel

Version

Snap contact

Operating   principle

1-2. Switch position: Mechanical

Continuous   current

1-2. Switch position: 6 A

Rated   operating voltage Ue

1-2. Switch position: 250 VAC

Installation

Vertical

Approach   direction

longitudinal, parallel to attachment   surface

Approach   speed

1-2. Switch position: 40 m/min

Switch   position spacing

12 mm

Connection   type

1-2. Switch position: Screw terminal

Ambient   temperature

-5...85 °C

IP   rating

IP67

Approval/Conformity

CE, CCC, WEEE, EAC

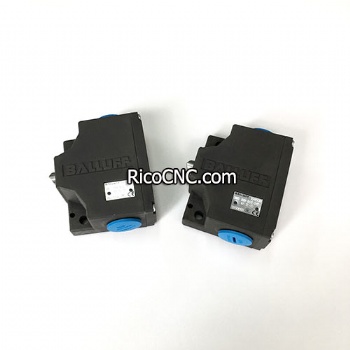

BALLUFF Snap Action Plunger Limit Switch.jpg

In mechanical multiple position limit switches without positive opening, a telescoping plunger executes the switching process. With its help, a mechanical switching element is connected in a separate, sealed chamber. The optimal choice of the plunger shape in combination with our cams is decisive in individual cases. This guarantees a long service life for your application.
BNS026R cam switch.jpg
