Carbide Tipped Brad Point Boring Bit.jpg

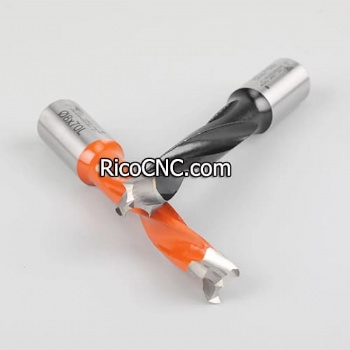

Solid Carbide Tipped Brad Point Drill Bits for Wood Dowel Boring Joinery Woodworking

The brad point drill is designed to cut blind holes and produce a clean edge on the top surface.

brad point drill bit.jpg

Brad point boring bits, also known as dowel bits due to their use in dowel joinery, to the industrial woodworking marketplace. Our wood drilling bits are manufactured with high-grade tungsten carbide, to exacting tolerances, and are known for their longevity and cutting precision.
A brad point drill provides a clean, straight, and accurately sized hole in wood. Not all boring is performed at a 90 degree angle and when one needs to bore at a slight angle the pin acts as the guide to the required position.

Brad Point Wood Drill Bit.jpg

These woodworking boring bits are supplied with a 10mm shank with an adjustable top screw making them compatible with most boring machines. Drills all composition materials, solid surface materials, plywoods, hardwoods, and softwoods on automatic or manual multi-spindle boring machines.
The brad in the center of the point allows accurate positioning when starting a hole even if the hole is not 90 degrees from the surface. The outlining spurs sheer the wood grain and leave a clean edge around the opening of the hole eliminating the need for sanding. The spurs continue to sheer the wood while drilling and produce an accurately sized hole. In most woods, the spurs also help to produce a cleaner edge when drilling through the backside of the wood.
brad point drill bits for woodworking.jpg

Brad-Point Drill Bit Feature:
• Drill bit set features exact cutting edges to reduce splintering
• Durable steel construction offers a long-lasting use
• Brad-point tips reduce drill walking and remove chips
• Precise cutting edges help prevent splintering
• Brad-point tips to limit drill walking
• Engineered flutes for reliable chip removal


blind holes boring drilling.jpg

There are sizes of left hand right hand through hole bore bits and have 57mm and 70mm long for choose:

brad point boring bit.jpg

Item No.

Direction

Drill Dia.(mm)

Blade Length (mm)

Overall Length (mm)

Shank Dia. (mm)

3*57L

Left Hand

3

21.5

57.5

10

3*57R

Right Hand

3

21.5

57.5

10

4*57L

Left Hand

4

28.5

57.5

10

4*57R

Right Hand

4

28.5

57.5

10

5*57L

Left Hand

5

28.5

57.5

10

5*57R

Right Hand

5

28.5

57.5

10

5.5*57L

Left Hand

5.5

28.5

57.5

10

5.5*57R

Right Hand

5.5

28.5

57.5

10

6*57L

Left Hand

6

28.5

57.5

10

6*57R

Right Hand

6

28.5

57.5

10

6.2*57L

Left Hand

6.2

28.5

57.5

10

6.2*57R

Right Hand

6.2

28.5

57.5

10

6.5*57L

Left Hand

6.5

28.5

57.5

10

6.5*57R

Right Hand

6.5

28.5

57.5

10

7*57L

Left Hand

7

28.5

57.5

10

7*57R

Right Hand

7

28.5

57.5

10

7.5*57L

Left Hand

7.5

28.5

57.5

10

7.5*57R

Right Hand

7.5

28.5

57.5

10

8*57L

Left Hand

8

28.5

57.5

10

8*57R

Right Hand

8

28.5

57.5

10

8.2*57L

Left Hand

8.2

28.5

57.5

10

8.2*57R

Right Hand

8.2

28.5

57.5

10

8.5*57L

Left Hand

8.5

28.5

57.5

10

8.5*57R

Right Hand

8.5

28.5

57.5

10

9*57L

Left Hand

9

28.5

57.5

10

9*57R

Right Hand

9

28.5

57.5

10

9.8*57L

Left Hand

9.8

28.5

57.5

10

9.8*57R

Right Hand

9.8

28.5

57.5

10

10*57L

Left Hand

10

28.5

57.5

10

10*57R

Right Hand

10

28.5

57.5

10

11*57L

Left Hand

11

28.5

57.5

10

11*57R

Right Hand

11

28.5

57.5

10

12*57L

Left Hand

12

28.5

57.5

10

12*57R

Right Hand

12

28.5

57.5

10

13*57L

Left Hand

13

28.5

57.5

10

13*57R

Right Hand

13

28.5

57.5

10

14*57L

Left Hand

14

28.5

57.5

10

14*57R

Right Hand

14

28.5

57.5

10

15*57L

Left Hand

15

28.5

57.5

10

15*57R

Right Hand

15

28.5

57.5

10


3*70L

Left Hand

3

34

70

10

3*70R

Right Hand

3

34

70

10

4*70L

Left Hand

4

41

70

10

4*70R

Right Hand

4

41

70

10

4.5*70L

Left Hand

4.5

41

70

10

4.5*70R

Right Hand

4.5

41

70

10

4.8*70L

Left Hand

4.8

41

70

10

4.8*70R

Right Hand

4.8

41

70

10

5*70L

Left Hand

5

41

70

10

5*70R

Right Hand

5

41

70

10

5.2*70L

Left Hand

5.2

41

70

10

5.2*70R

Right Hand

5.2

41

70

10

5.5*70L

Left Hand

5.5

41

70

10

5.5*70R

Right Hand

5.5

41

70

10

5.8*70L

Left Hand

5.8

41

70

10

5.8*70R

Right Hand

5.8

41

70

10

6*70L

Left Hand

6

41

70

10

6*70R

Right Hand

6

41

70

10

6.2*70L

Left Hand

6.2

41

70

10

6.2*70R

Right Hand

6.2

41

70

10

6.5*70L

Left Hand

6.5

41

70

10

6.5*70R

Right Hand

6.5

41

70

10

7*70L

Left Hand

7

41

70

10

7*70R

Right Hand

7

41

70

10

7.5*70L

Left Hand

7.5

41

70

10

7.5*70R

Right Hand

7.5

41

70

10

7.8*70L

Left Hand

7.8

41

70

10

7.8*70R

Right Hand

7.8

41

70

10

8*70L

Left Hand

8

41

70

10

8*70R

Right Hand

8

41

70

10

8.2*70L

Left Hand

8.2

41

70

10

8.2*70R

Right Hand

8.2

41

70

10

8.5*70L

Left Hand

8.5

41

70

10

8.5*70R

Right Hand

8.5

41

70

10

9*70L

Left Hand

9

41

70

10

9*70R

Right Hand

9

41

70

10

9.5*70L

Left Hand

9.5

41

70

10

9.5*70R

Right Hand

9.5

41

70

10

9.8*70L

Left Hand

9.8

41

70

10

9.8*70R

Right Hand

9.8

41

70

10

10*70L

Left Hand

10

41

70

10

10*70R

Right Hand

10

41

70

10

10.2*70L

Left Hand

10.2

41

70

10

10.2*70R

Right Hand

10.2

41

70

10

10.5*70L

Left Hand

10.5

41

70

10

10.5*70R

Right Hand

10.5

41

70

10

11*70L

Left Hand

11

41

70

10

11*70R

Right Hand

11

41

70

10

12*70L

Left Hand

12

41

70

10

12*70R

Right Hand

12

41

70

10

13*70L

Left Hand

13

41

70

10

13*70R

Right Hand

13

41

70

10

14*70L

Left Hand

14

41

70

10

14*70R

Right Hand

14

41

70

10

15*70L

Left Hand

15

41

70

10

15*70R

Right Hand

15

41

70

10

carbide brad point drill bits.jpg

We carry a large selection of carbide-tipped industrial quality boring bits (dowel drills).
dowel bits for wood.jpg

Brad Point are used to drill flat bottom holes in wood, melamine and other wood composite materials, and are primarily used to create holes for shelving pins.
Through Hole (V-Point) are used to drill through the material primarily for the insertion of dowels with clean edges on both sides.
Hinge Boring are used to bore holes for the insertion of door hinges.

Flat Boring Bits for wood.jpg

Welcome to contact us if any inquires for woodworking tools!
