Z 2+2 CNC Double Flutes Polycrystalline Diamond PCD Spiral Router Bits

Z 2+2 CNC Double Flutes Polycrystalline Diamond PCD Spiral Router Bits

• Diamond spiral cutter
• PCD Router Bit
• 2 flutes spiral bits
• Two flutes spiral PCD bits
• Router bit Z=2+2
• PCD spiral router nesting tools
• Teeth No.2+2
• Double flutes diamond bits
INQUIRY

Z 2+2 PCD bits.jpg

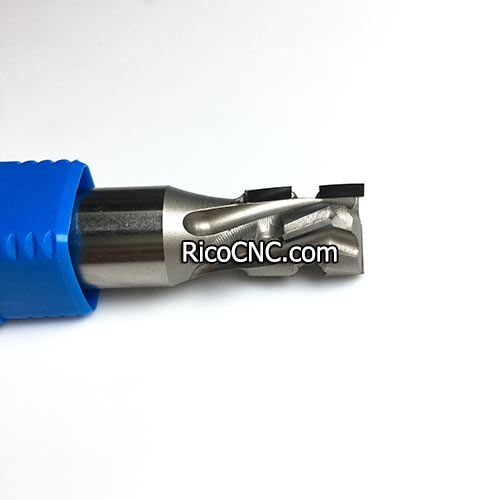

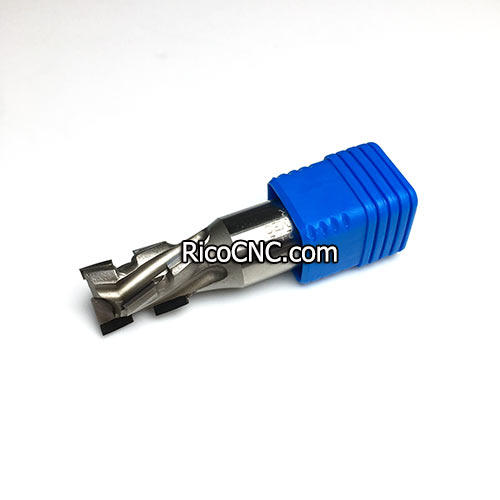

Z 2+2 CNC Double Flutes Polycrystalline Diamond PCD Spiral Router Bits

This Z=2+2 PCD two flutes spiral bits are specially designed for industrial CNC applications in a variety of tough, abrasive materials, widely used in woodworking.
PCD router bits Z 2+2.jpg

2 flutes PCD diamond bit is widely used in CNC router bits. PCD performs exceptionally well in CNC woodworking machines even in plastic cutting and non-ferrous metals, sizing nesting and dividing cuts on CNC routers. Diamond bits last for long time bits, it is great for large quantities products producing.
PCD spiral router nesting tools.jpg

Excellent for cutting:
Aluminum
Aluminum Composite Material (ACM)
Composite panels
Custom composite materials
Fiberglass
Fiber-reinforced composites
Fiber-reinforced urethane
Fiber-reinforced structural foam floors
Laminate
Lightweight composites
MDF
Particle board
Plywood Veneer

Router bit Z=2+2.jpg

2 flutes PCD milling bits benefits:
• Harder cutting edge provides higher resistance to wear
• Cut thousands of feet more than carbide without changing tool, saving setup time
• Optimized machine tool efficiency
• Quality of finish is often significantly improved
Double flutes diamond bits.jpg

2 Flutes Diamond Router Cutters Size:

PCD bits sizes.jpg

Item No	CED(mm)	CEL(mm)	SHK(mm)	OVL(mm)	Teeth No. Z	Teeth Height: H
D010	18	28	20	85	2+2	2.5
D020	18	35	20	95	2+2	2.5
D030	20	28	20	100	2+2	2.5
D040	20	35	20	110	2+2	2.5
D050	20	43	20	120	2+2	2.5
D060	20	28	25	100	2+2	2.5
D070	20	35	25	110	2+2	2.5
D080	20	43	25	120	2+2	2.5
D090	25	28	25	100	2+2	2.5
D100	25	35	25	110	2+2	2.5
D110	25	43	25	120	2+2	2.5

Diamond Spiral Cutter.jpg

RicoCNC also can supply PCD Straight Diamond Bits, 1 Flute Spiral Dimond bits, 2 Flutes Spiral Diamond Bit, 3 Flutes Spiral Diamond Bit, and other CNC router bits.
