Bosch Rexroth Linear R169421410 Size 25 Ball Rail Runner Block for FlexiCam CNC Y and Z axis

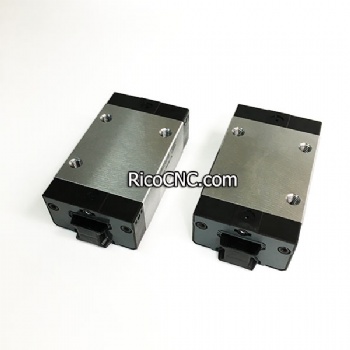

This R169421410 Ball Rail Runner Block is Bosch Rexroth KWC-025 -SNN-C1-N-2 linear block, widely used for CNC router machines, like FlexiCam, Homag, etc.

KWC-025 -SNN-C1-N-2.jpg

Bosch Rexroth Linear R169421410 Features:
• It is for restricted upward and longitudinal space
• Maximum precision
• Patented entry zone increases the travel accuracy up to a factor of six
• Significantly reduced frictional oscillations and low friction level, particularly under external load
• Long-term lubrication is possible over several years
• Can be used on all SNS/SNO Ball Guide Rails
• Lube fittings with metal threads on all sides
• End-face fastening thread for all attachments
• Integrated all-around sealing
• High torque capacity
• Optional integrated, inductive and wear-free measuring system
FlexiCam block.jpg

Bosch Rexroth Linear R169421410 size reference:
Rexroth guide block sizes.jpg
a) For O-ring
Size 20 - 25: Ø 5 • 1.0 (mm)
Open lube port if necessary (see general technical notes and information in the "Maintenance" section).
b) Lube nipple, size 20 - 25:
Funnel-type lube nipple DIN 3405-B M3x5, B2 = 8 mm
Lube port with additional anti-twist feature.
When using different lube nipples, pay attention to the screw-in depth of 5 mm!
The lube nipple is included in the scope of delivery (not installed).
Size 20: Connection is possible on end-face.
Size 25: Connection is possible on all sides.
Size 25 ball rail runner block.jpg

A

48mm


A1

24mm

A2

23mm


A3

12.5mm

B

81 mm +0.5


B1

57.8mm

E1

35mm


E2

35mm

E8

38.3mm


E9

8.5mm

H

33mm


H1

26.5mm

Dimension H2 with cover strip

24.45mm


Dimension H2 without cover strip

24.25mm

K1

16.6mm


K2

17mm

K3

4.1mm


K4

4.1mm

N3

7mm


N6

15.2 mm ±0.5

S2

M6


ØS5

7mm

S9

M3x5


T

60mm

V1

7.5mm





Ball runner block Bosch-Rexroth R169421410.jpg
RicoCNC supplies a range of linear guide block and rails brands such as Rexroth, INA, THK, HIWIN, PMI, ABBA, STAF, etc. All are original motion products.
Bosch Rexroth ball rail systems.jpg

If any need of CNC machine parts, welcome to contact us.


Linear bearings for FlexiCam 712XLT.jpg
