Germany Mubea Disc Spring Belleville Spring Washer for CNC machine Spindles Drawbars

This is called disc spring, manufactured by Mubea, Germany. Belleville disc springs, also known as conical washers, have a curved shape that creates a spring-like action. They are used in applications that require heavy loads, such as machine tools, valves, wind turbines, slip clutches, piston return springs, overload clutches, and spring actuated brakes.

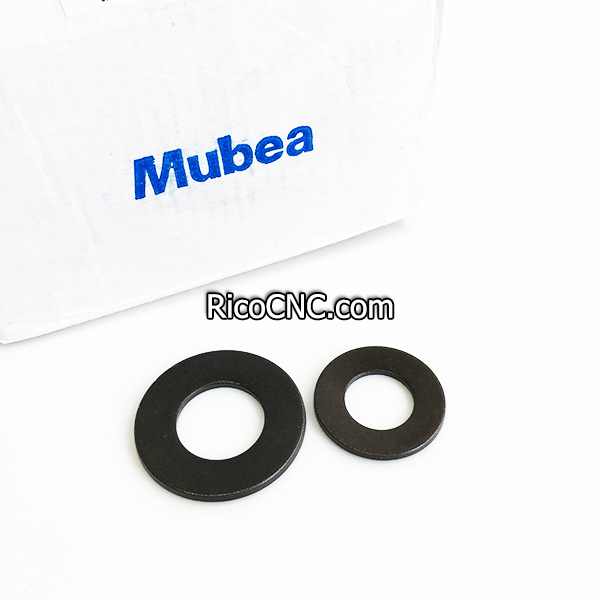

Belleville disc springs.jpg

This type of disc spring stack installed in the machine spindle used to provide the clamping force that holds the cutting tool. These specialized springs are produced with a machined inner diameter, whose geometry is optimized to provide very tight dimensional tolerances and reduced friction during operation.
Belleville spring washer.jpg

Specification of Mubea Belleville disc springs:
Type: Belleville Disc Spring
System of Measurement    : Metric
Material: Chrome Vanadium Steel
Material Grade: 51CrV4
Finish/Coating    Phosphate & Oil
Hardness    Rockwell C42-C52
Mubea 180014.jpg

Features:
High-temperature resistance & High fatigue life
Different assemblies can be designed to achieve the desired load characteristics
Special materials and various surface coatings are available
Better space utilization when compared to other spring types
Low creep tendency with the correct dimensioning
High load capacity with a small spring deflection
EN 16983 (DIN 2093) standards
Mubea 180034.jpg

Belleville springs look like dished washers with a hole in the middle. They come in a wide variety of sizes. These are the most common type of springs used with drawbars and the easiest to locate. Spindle design engineers use a variety of arrangements to accomplish the spring rate and compression distance needed. Belleville springs can be nested together to make a stiffer spring or they can be opposed to making a longer spring.
Belleville springs.jpg

Here are some models of Mubea spring washers.
If you cannot find the model you want in the list, please contact us.

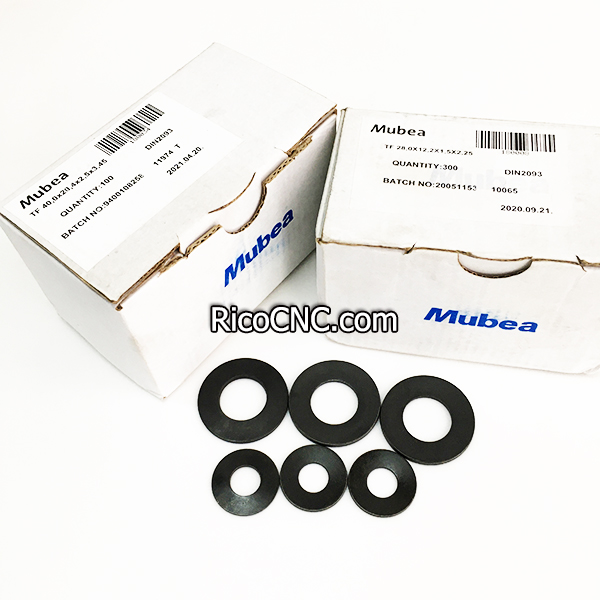

Mubea Disc Spring .jpg

When ordering Belleville springs four dimensions are required, Outside Diameter (OD), Inside Diameter (ID), Thickness, and spring height.

Mubea Part No

Dimensions in mm (OD x ID x Thickness x LO)

170022

12x6.2x0.6x 0.95

170051

18x9.2x1x1.4

170063

20x10.2x1.1x1.55

180003

23x12.2x1.5x2.1

180004

25x12.2x1.5x2.05

180008

28x12.2x1.5x2.25

180010

28x14.2x1.5x2.15

180011

31.5x16.3x1.25x2.15

180014

31.5x16.3x2x2.75

180020

34x16.3x2x2.85

181022

35.5x18.3x2x2.8

180029

40x16.3x2x3.1

180030

40x18.3x2x3.15

180034

40x20.4x2.5x3.45

180037

45x22.4x2.5x3.5

180053

50x25.4x3x4.1

180057

56x28.5x3x4.3

180065

60x30.5x3x4.7

180082

70x40.5x5x6.4

Mubea 180011 Disc Spring.jpg

RicoCNC offers a wide range of CNC replacement components. We focus on CNC machine trouble-shooting to make your machine be in good working order.

disc spring for CNC spindle.jpg
