Products > Homag Spare parts

Homag 4035012812 4-035-01-2812 FESTO 536273 Compact Cylinder

• Homag 4035012812 cylinder
• FESTO 536273 cylinder
• Homag product ID 4035012812
• Compact cylinder ADN D=32 HUB= 30 G1/8
• 4-035-01-2812 Homag cylinder
• Cylinder for Homag edgebander
• FESTO 536273 ADN-32-30-A-P-A
INQUIRY

Homag 4035012812 4-035-01-2812 FESTO 536273 Compact Cylinder

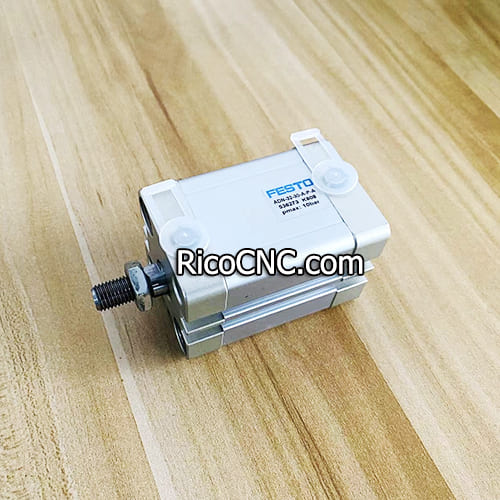

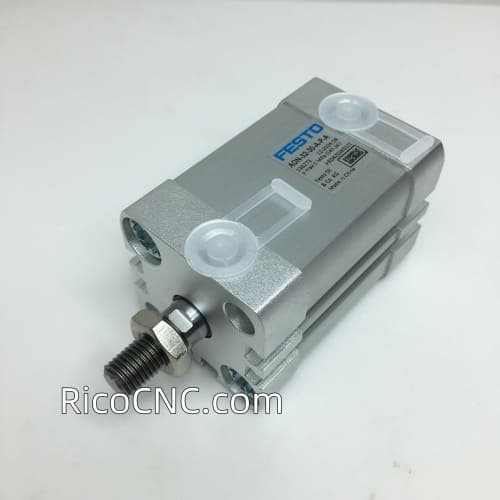

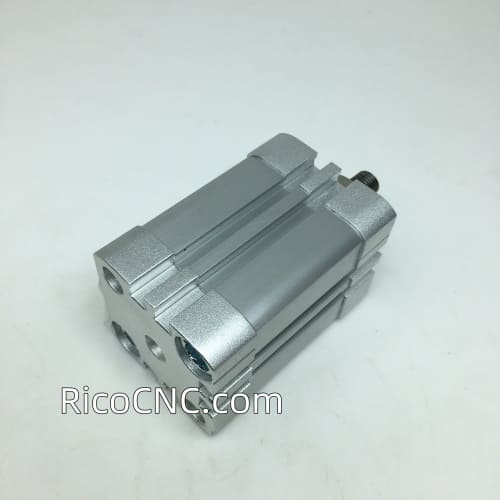

This is FESTO ADN-32-30-A-P-A 536273 compact cylinder. It can be used on Homag edgebanding machine. Homag spare part number is 4035012812 or 4-035-01-2812.
homag 4035012812 cylinder.jpg

Features of FESTO 536273 Compact Cylinder:
Manufacturer: FESTO
Manufacturer Model #: 536273
compact cylinder ADN-32-30-A-P-A PER ISO 21287
Mode of operation: Double-acting
Piston diameter: 32 mm
Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke: 483 N
Stroke: 30 mm
Thread=M10x1.25
Cushioning: Elastic cushioning rings/plates at both ends
Product weight: 353 g

RicoCNC supplies a wide range of spare parts for Homag edgebanding machine, including Homag edgebander track pads, Homag pressure wheels, Homag edgebander glue pot, homag cloth buffing wheels, Homag shock absorber， Homag trimming motor, Homag pre-milling motor, Homag polishing motor, edge bander premilling cutter, air cylinder, solenoid valve, infeed roller, etc.

Welcome to your inquiry!
