HOMAG 4008200428 4-008-20-0428 DILM7-01 24VDC EATON MOELLER Contactor

• 4008200428 contactor
• 4-008-20-0428 Homag contactor
• EATON DILM 7-01
• EATON MOELLER Contactor
• DILM7-01 24VDC EATON MOELLER Contactor
• 276600 Model code: DILM7-01(24VDC)
• Homag contactor
• Eaton XTCE007B01
INQUIRY

HOMAG 4008200428 4-008-20-0428 DILM7-01 24VDC EATON MOELLER Contactor

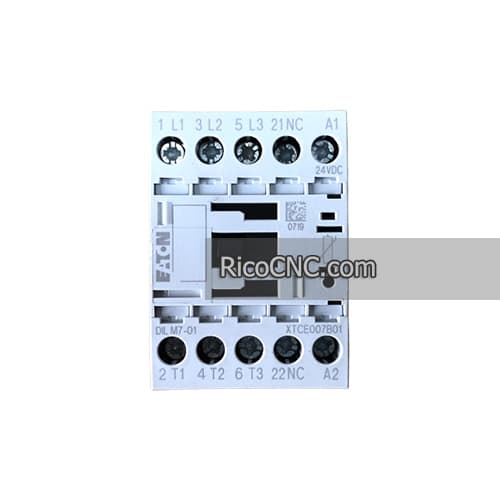

This is a contactor for Homag machine, the Homag part number is 4008200428 4-008-20-0428. It is EATON MOELLER contactor 276600 Model code: DILM7-01(24VDC).

Specification of HOMAG 4008200428 4-008-20-0428 DILM7-01 24VDC EATON MOELLER Contactor:

Brand	Eaton
Coil Voltage	24 V dc
Number of Poles	3
Contact Voltage Rating	400 V ac
Contact Current Rating	7 A
Power Rating	3 kW
Range	xStart
Normal State Configuration	3NO
Number Of Auxiliary Contacts	1
Terminal Type	Screw
Length	68mm
Width	45mm
Depth	117mm
Mounting Style	Tabletop Mount
Minimum Operating Temperature	-25°C
Maximum Operating Temperature	+60°C
Pole and Throw Configuration	3P
