Products > Homag Spare parts

4008200433 4-008-20-0433 Homag Auxiliary Contact Block DILA-XHIC31

• 4008200433 Switch
• 4-008-20-0433 switch connector
• EATON DILA-XHIC31
• AUXILIARY SWITCH MODULE DILA-XHI31-PI
• Auxiliary contact block DILA-XHIC31
• Homag Auxiliary contact block
• 276533 Model code: DILA-XHIC31
• Homag spare parts
INQUIRY

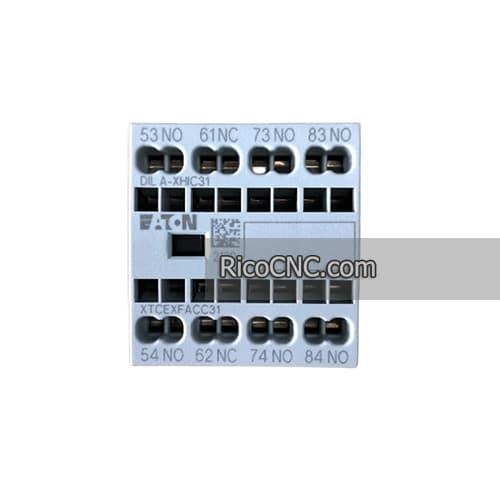

4008200433 4-008-20-0433 Homag Auxiliary Contact Block DILA-XHIC31

This is an Auxiliary contact block for HOMAG, the Homag part number is 4008200433 4-008-20-0433. It is EATON DILA-XHIC31, DILA-XHI31-PI, 276533. It is also used for Brandt / Weeke / Holzma / Ligmatech / Friz.

Specifciations of 4008200433 4-008-20-0433 Homag Auxiliary Contact Block DILA-XHIC31

Product Name	Eaton Moeller® series DILA Accessory Auxiliary contact module
Catalog Number	276533
Model Code	DILA-XHIC31
Product Length/Depth	55 mm
Product Height	38 mm
Product Width	36 mm
Features	Interlocked opposing contacts within an auxiliary contact module (according to IEC 60947-5-1 Annex L)
Functions	For standard applications
Fitted with:	Interlocked opposing contacts
Fitted with:	Switching elements according to EN 50005
Number of poles	Four-pole
Electric connection type	Spring clamp connection

RicoCNC can offer a range of Homag woodworking machine accessories, including Weeke CNC machine parts, Holzma beam saw parts, and Brandt edgebander parts.

If you are looking for spare parts for Homag machines, please don’t hesitate to contact us!
