4011041760 4-011-04-1760 Aventics Pneumatic Directional Valve R422102034 for Homag

• 4011041760 valve
• 4-011-04-1760 control valve
• AVENTICS R422102034
• ELECTRIC VALVE 2X 3/2 G1/8 TC08 MONOST
• Electromagnetic Valve R422102034
• R422102034 Aventics Pneumatic Directional Valve
• Homag 401104176Air Control Valve
• TC08-3/2CC-SR-024DC-E-FORM_C-SGL
INQUIRY

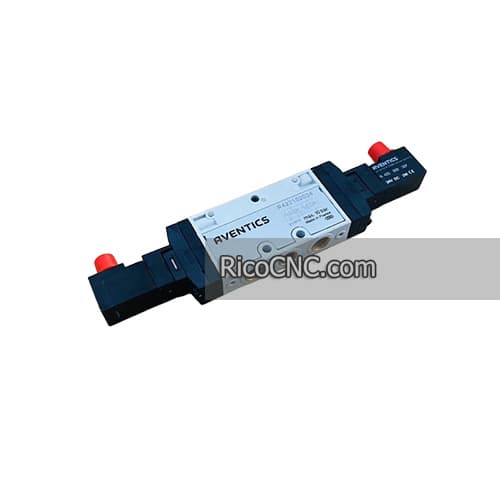

4011041760 4-011-04-1760 Aventics Pneumatic Directional Valve R422102034 for Homag

This is an Electromagnetic Valve for Homag machine, the Homag part number is 4011041760 4-011-04-1760, It is made by Aventics, Aventics part number is R422102034, series TC08-3/2CC-SR-024DC-E-FORM_C-SGL.

Specifications of 4011041760 4-011-04-1760 Aventics Pneumatic Directional Valve R422102034:

Activation	Electrically
Switching principle	2x 3/2 NC/NC, with spring return
Valve function	NC/NC
Actuating control	Double Solenoid
Manual override	without detent
Pilot	External
Nominal flow Qn	600 l/min
Compressed air connection output	G 1/8
Min. working pressure	-0.9 bar
Max. working pressure	10 bar
Operational↩voltage	24 V DC
Min. ambient temperature	-10 °C
Max. ambient temperature	50 °C
Housing material	Polyamide fiber-glass reinforced
