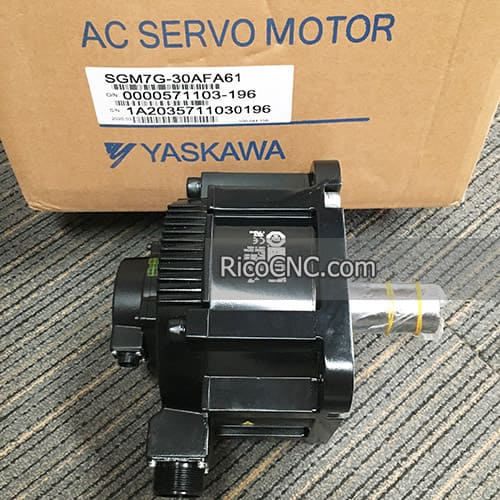

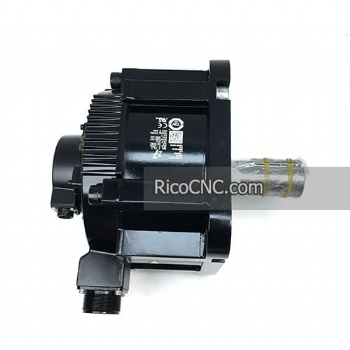

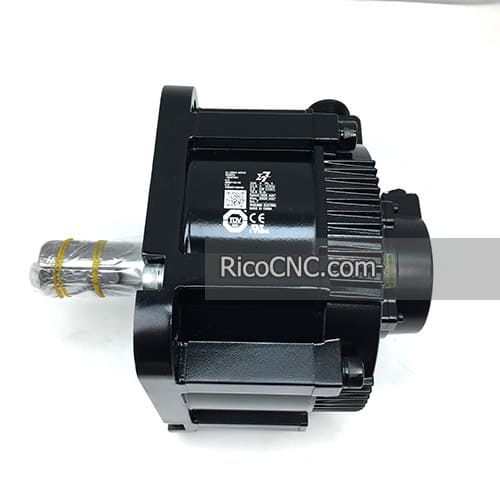

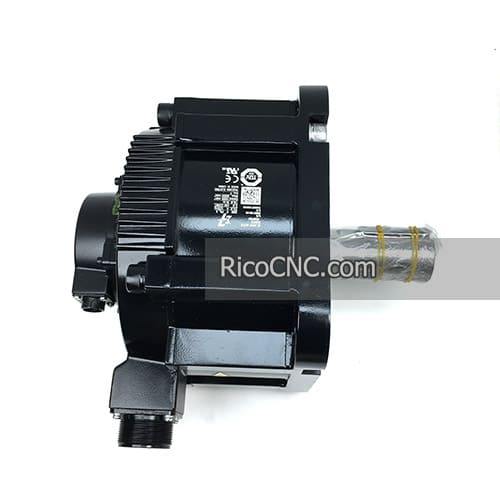

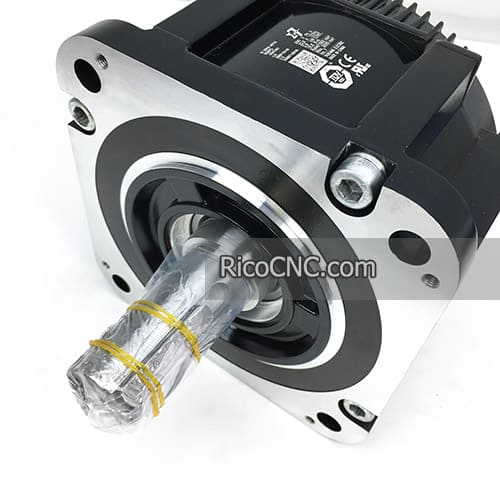

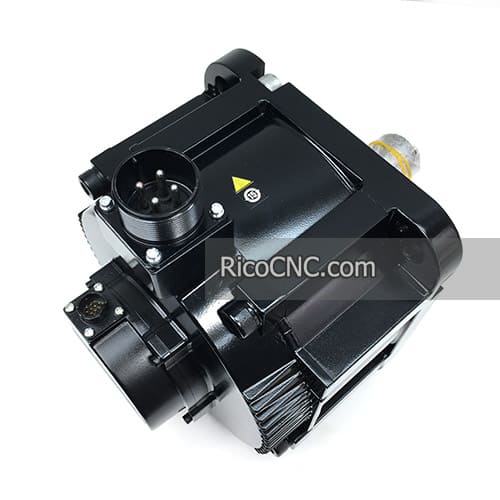

Yaskawa SGM7G-30AFA61 Sigma 7 Rotary Servo Motor
This is a sigma 7 rotary servomotor made by YASKAWA, the model number is SGM7G-30AFA61.
Yaskawa SGM7G-30AFA61 Sigma 7 Rotary Servo Motor specifications:
| Input power supply | 200 V |
| Rated output | 2.9 kW |
| Shaft end | Straight with key and tap |
| Encoder resolution | 24 bit |
| Encoder type | Incremental |
| Options | Without options |
| Height | 224 mm |
| Width | 180 mm |
| Depth | 239 mm |
| Weight | 13.5 kg |
| Allowable Load Moment of Inertia | 5 Times |
| Rated torque | 18.6 Nm |
| Instantaneous maximum torque | 54 Nm |
| Rated Motor Speed | 1500 1/min |
| Maximum motor speed | 3000 1/min |
| Flange Dimension (LC) | 180 mm |
| Flange Diameter (LA) | 200 mm |
| Shaft End Diameter (S) | 35 mm |
| Shaft End Length (Q) | 76 mm |
Yaskawa SGM7G-30AFA61 Sigma 7 Rotary Servo Motor features:
24-bit high-resolution encoder installed
High efficiency, low heat generation
Downsizing by up to 20%
Flange compatible with Sigma-5
Medium inertia, low speed, high torque
