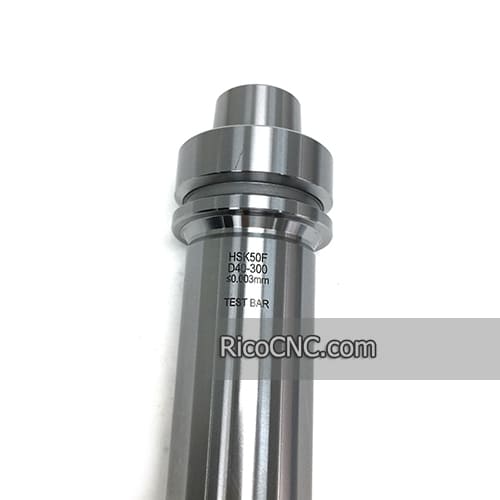

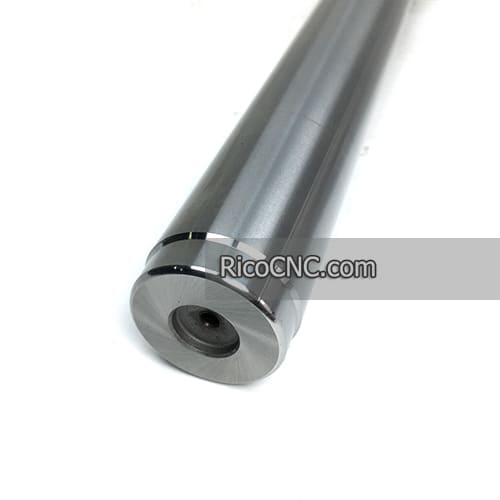

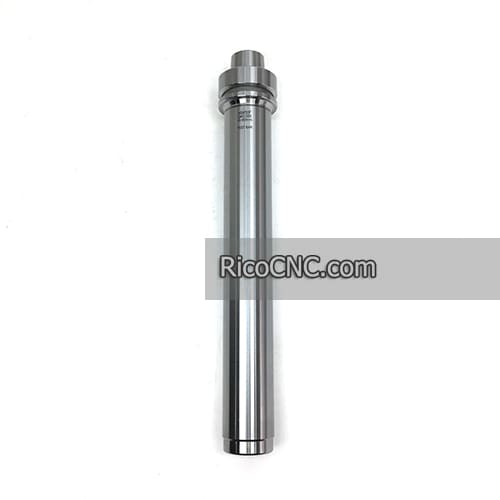

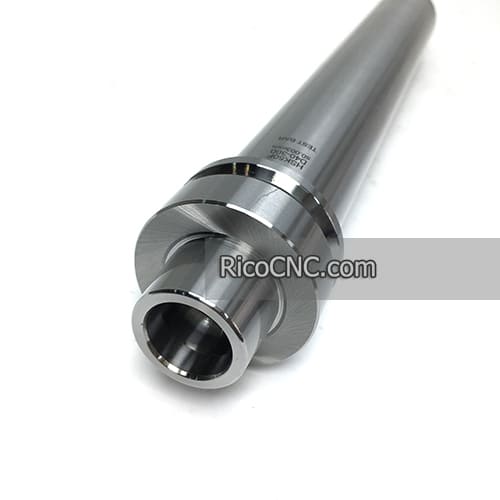

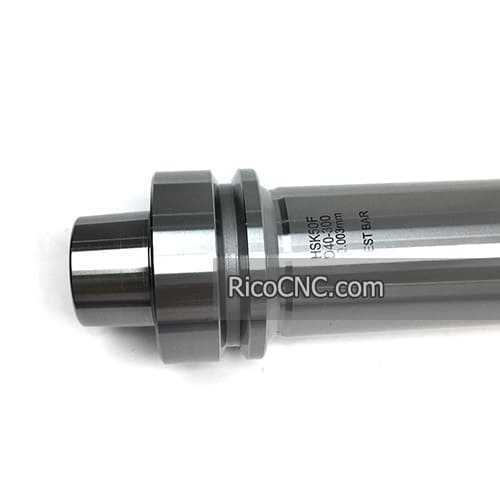

HSK50F-D40-300 Spindle Runout Test Bars Calibration Arbors Tools
This test bar calibration tool is HSK50F test arbor, It is for HSK50 F spindle runout testing. It is a precision measuring equipment for machine auto tool changer spindle maintenance, the HSK50F-D40-300L test bar runout less than 0.003mm.
HSK50F-D40-300 spindle test arbor parameters:
Model: HSK50F-D40-300
Precision ground all diameters concentric within 3 microns
Roundness within 0.002mm
Concentricity within 0.003mm
Surface roughness Ra < 0.4
Made from 20CrMnTi hardened to 54 - 56rc
Arbor diameter is 40mm in diameter
Protective case included
