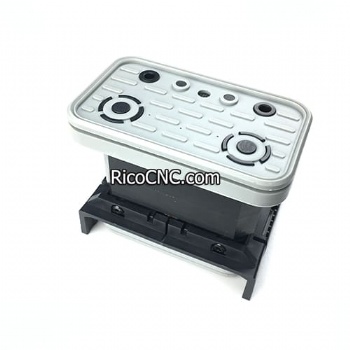

10.01.12.01079 VCBL-K2 125x75x100 D-360 Vacuum Block 360 degree rotatable for Schmalz BUSELLATO 2-circuit Console
This is a vacuum block for Schmalz 2-circuit console, Length is 125 mm, Width is 75 mm, Height is 100 mm, it can be turned 360°.Schmalz Part no. is 10.01.12.01079, also call VCBL-K2 125x75x100 D-360.
10.01.12.01079 VCBL-K2 125x75x100 D-360 Replacements rubber pads:
Top rubber pad: 10.01.12.00011 VCSP-O 125x75x16.5 4-011-11-0079
Bottom rubber pad: 10.01.12.00798 VCSP-U 140x115x16.5 VCBL-K2 4-011-11-0102
There is also another vacuum pods similar, but different bottom:
VCBL-K2 125x75x100 D-360 10.01.12.01393
With top rubber pad VCSP-O 125x75x16.5 10.01.12.00011 and bottom rubber pad VCSP-U 160x115x16.5 10.01.12.00922.
Besides Schmalz machine, it also can undoubtedly be used interchangeably on the following machines manufactured after 2003 and equipped with 2-circuit beam tables:
• Busellato Jet Master
• Busellato Jet Optima (much more often equipped with single-circuit beam tables - TL-K1)
Typical materials machined on VCBL suction cups include laminated and raw furniture boards, MDF, OSB and plastics.
Rico can supply various vacuum blocks and vacuum pods for Homag, Biesse, Schmalz, etc.
Please contact us for more information.
