High Precision OZ16 Spring Collet for CNC Woodworking Machines

High Precision OZ16 Spring Collet for CNC Woodworking Machines

• OZ16 collet
• OZ16 spring collet
• High precision OZ16 spring collet
• OZ collets Type B
• EOC 16B collet
• Clamping range 2-16mm
• OZ collets
• EOC 16 collet
INQUIRY

EOC 16 collet.jpg

High Precision OZ16 Spring Collet for CNC Woodworking Machines

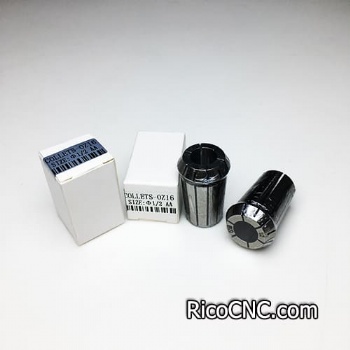

This is the OZ 16 standard collet, also called EOC 16B collet or OZ16B collet. The clamping size of the OZ16 CNC collet is 2-16mm. OZ collet is also called EOC, RDO, or SYOZ collet. CNC collets are mounted on tool holders and used for clamping the tools, mostly used on CNC woodworking machines.
EOC16B collet.jpg

OZ Collet sets are available.

Model	d	D	D1	L
OZ6 collet	1-6	10	11.5	21
OZ8 collet	1-8	12.65	14.5	26
OZ10 collet	1-10	15.15	17.2	30
OZ12 collet	1-12	17.75	19.8	34
OZ16 collet	2-16	22.65	25.5	40
OZ20 collet	2-20	27.4	29.8	45
OZ25 collet	2-25	32.9	35.05	52
OZ32 collet	4-32	41.3	43.7	60
OZ40 collet	6-40	49.7	52.2	68
OZ50 collet	8-50	61.1	63.8	80

OZ collets.jpg

RicoCNC can also provide other CNC collet types, such as ER11, ER16, ER20, ER25, ER32, ER40, OZ16, OZ20, OZ25 collets.

Whether you need metric or imperial collets, please feel free to contact us!
