4-011-04-1889 4011041889 FESTO 5/2 Solenoid Valve 578158 for HOMAG Machine


This is a FESTO VUVG Series Solenoid Valves, also called Pneumatic Control Valve, It is 5/2-way electrically-actuated solenoid Valve, 24V dc, part number is 578158, equivalent to part #VUVGB14M52MZTF1R8L or VUVG-B14-M52-MZT-F-1R8L.

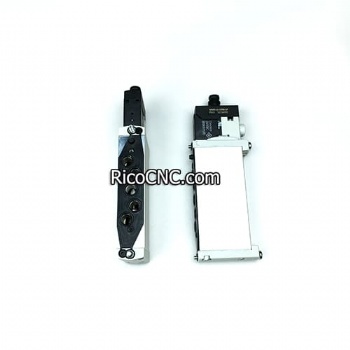

FESTO 578158.jpg

This solenoid valve has a high flow rate and is compact, allowing operation of more applications using a single valve type.

It can be used on HOMAG machines, and HOMAG part number is 4011041889 or 4-011-04-1889.

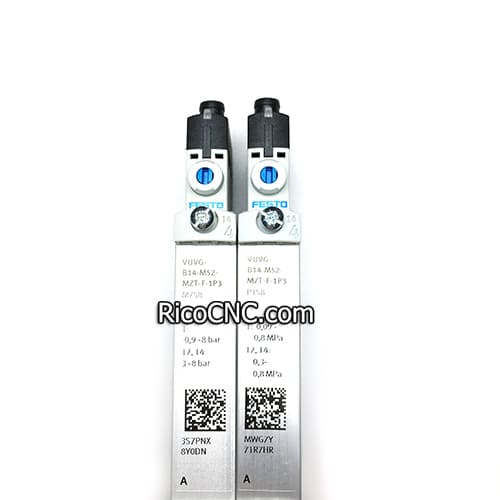

Solenoid VUVG Series.jpg


VUVG-B14-M52-MZT-F-1R8L 578158 specification:

pneumatic working portFlange
Valve function5/2-way, monostable
Valve size 14 mm
Type of mountingOn manifold rail
Product weight70 g
Characteristic coil data24 V DC: 1.0 W
Max. positive test pulse with 0 signal700 µs
Switching time on13 ms
Suitability for vacuumyes
lapPositive overlap
Pilot air supplyExternal
Manual overrideDetenting Non-detenting Covered
Sealing principleSoft
Nominal size5,6 mm
ApprovalRCM trademark c UL us - Recognized (OL)
DesignPiston gate valve
Operating voltage24V DC
Standard nominal flow rate520 l/min ... 630 l/min
Type of actuationElectric
Material housingWrought aluminium alloy
Note on materialsRoHS-compliant
Electrical connectionVia electrical sub-base
Ambient temperature-5 °C ... 60 °C
Media temperature-5 °C ... 60 °C
Corrosion resistance class CRC2 - Moderate corrosion stress
Restrictions for environmental and media temperature-5 ... 50° C Without holding current reduction
Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)
Permissible voltage fluctuations+/- 10 %
Max. negative test pulse with 1 signal900 µs
Duty cycle100%
Switching time off37 ms
Pilot pressure3 bar ... 8 bar
Symbol991,025
Type of pilotingPilot actuated
Mounting positionoptional
Exhaust-air functionWith flow control option
Degree of protectionIP65 With plug socket
Pilot mediumCompressed air to ISO 8573-1:2010 [7:4:4]
Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]
Shock resistanceShock test with severity level 2 to FN 942017-5 and EN 60068-2-27
Vibration resistanceTransport application test with severity level 2 to FN 942017-4 and EN 60068-2-6
Type of resetMechanical spring
Operating pressure-0,9 bar ... 8 bar

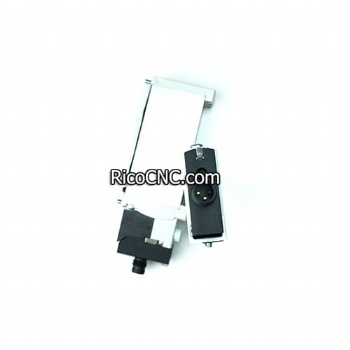

FESTO Pneumatic control valve.jpg


RicoCNC can supply other FESTO valves such as:

FESTO 573418 VUVG-B10-B52-ZT-F-1T1L

FESTO VUVB-ST12-M52-MZH-QX-D-1T1 558369

FESTO Solenoid Valve 526990 5/2-WAY 0.9-10 BAR CPASC1-M1H-M-P-2.5

Solenoid Valve VUVB-ST12-B52-ZH-QX-D-1T1 FESTO 558370

FESTO MHE2-M1H-3/20-M7 Solenoid Valves 196150

FESTO Solenoid Valve VUVG-LK14-B52-T-G18-1H2L-S

...

FESTO valve for Homag.jpg

There are other brands solenoid valves can be supplied here, for more information, please contact us freely.
