Kwangwoo Replacement RIM-60-0100BVC(R) Rotary Encoders for DOOSAN Machines

Kwangwoo Replacement RIM-60-0100BVC(R) Rotary Encoders for DOOSAN Machines

• RIM-60-0100BVC
• RIM-60-0100BVC(R) Rotary Encoders
• Kwangwoo RIM-60-0100BVC(R)
• Kwangwoo Replacement RIM-60-0100BVC
• Rotary Encoders for DOOSAN Machines
INQUIRY

Kwangwoo Replacement RIM-60-0100BVC(R) Rotary Encoders for DOOSAN Machines

This rotary encoder is made from China, can replace Kwangwoo RIM-60-0100BVC(R), for Doosan CNC machines. Rotary Encoder is a sensor that converts mechanical movement into electrical signal (pulse)

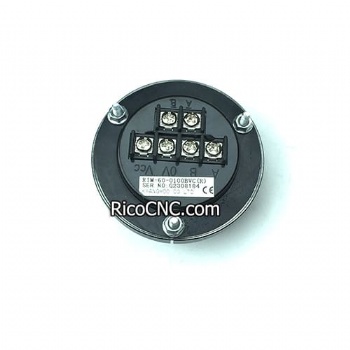

Kwangwoo RIM-60-0100BVC(R).jpg

RIM-60-0100BVC(R) features:

• Long Life

• Small size

• Small O.P Use

Application

• CNC Machine

• CNC Milling machine

• Industrial use

RIM-60-0100BVC(R) Rotary Encoders.jpg

Electrical Spec.

Resolution	100 P/R
Supply Voltage	DC+4.75V~28V (Line drive DC +5V)
Current Consumption	2 Type	60mA
Current Consumption	2D Type	150mA
Output Voltage	H	2.5V
Output Voltage	L	0.5V
Max. Response Frequency	5 kHz Max.
Output Mode	Voltage OutputOpen Collector	Line Drive

Mechanical Spec.

Maximum Rotating Speed	5,000 RPM
Starting Torque	200gf·cm Max. at 25°C
Moment of Inertia	30gf·cm² Max.
Allowable Shaft Load	Radial	5kg Max.
	Axial	5kg Max.
Vibration Resistance	10∼55Hz / 1.5mm
Shock Resistance	50G/11msec
Operation Temp. Range	-10°C ∼ +60°C
Storage Temp. Range	-20°C ∼ +80°C
Protection	IP64
