Autonics PRT08-2DO Proximity Inductive Sensors Cylindrical Proximity Sensors

This is Inductive Proximity Sensor from Autonics, model number is PRT08-2DO.It is Long, Ø8mm, 2mm Range, NO, 2-Wire, 12-24VAC.

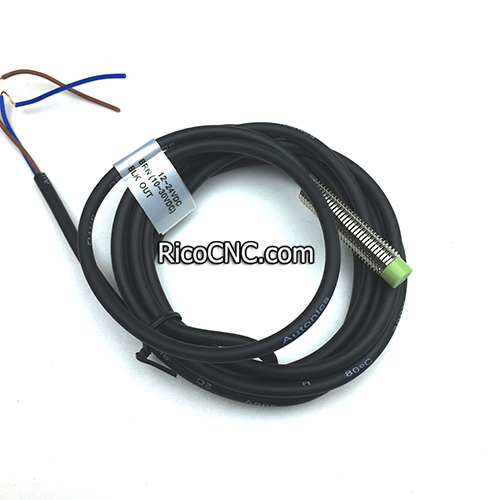

Autonics Proximity Sensors.jpg

Autonics PRT08-2DO Technical data:

Wire type and power	DC 2-wire type 12-24VDC
Sensing side diameter	M08
Sensing distance	2mm
Installation	Non-shield(non-flush)
Standard sensing target	8×8×1mm(iron)
Response frequency	1kHz
Current specification	Leakage current: Max. 0.6mA
Control output	Normally Open
Material	Case/Nut: Nikel plated Brass, (connector case of DIA. of sensing side Ø 8 mm: SUS303), washer: Nikel plated Iron, sensing side: polybutylene terephthalate, standard cable (black): polyvinyl chloride (PVC), oil resistant cable (gray): oil resistant polyvinyl chloride (PVC)
Cable Standard/material	Standard cable
Protection structure	IP67
Approval	CE
Body length	Standard type
Environment_Ambient temperature	-25 to 70℃, storage: -30 to 80℃
Environment_Ambient humidity	35 to 95% RH, storage: 35 to 95% RH
Hysteresis(distance)	Max. 10% of sensing distance
Residual voltage	Max. 3.5V
Weight	Approx. 64g(approx. 52g)

Inductive Proximity Sensor PRT08-2DO Features Include:

• Improved the noise resistance with dedicated IC

• Built-in reverse polarity protection circuit (DC 3-wire type)

• Built-in surge protection circuit

• Built-in overcurrent protection circuit (DC type)

• Long life cycle and high reliability, and simple operation

• IP67 protection structure (IEC standard)

• Replaceable for micro switches and limit switches

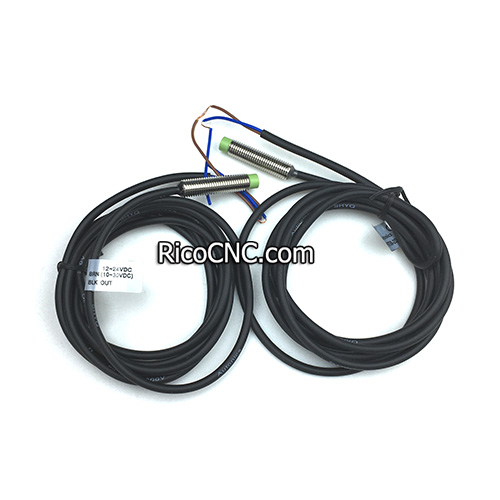

cylindrical proximity sensors.jpg

RicoCNC also can supply other Autonics sensors, like:

PR12-4DN, PR12-4DP, PR12-2DN, PR12-2DP, PR08-2DN, PR08-2DP, PR08-1.5DN, PR08-1.5DP, PR18-8DN, PR18-8DP, PR18-5DN, PR18-5DP, PRL12-2DN, PRL12-4DN, PRL18-8DN, PRL18-5DN, PRT12-4DO, PRT12-2DO, PRT18-8DO, PRT18-5DO, PRT08-2DO, PRT08-1.5DO, PR12-4DN2, etc.

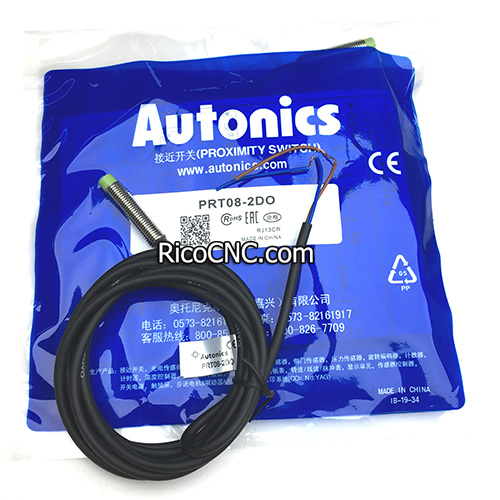

Inductive Proximity Sensor PRT08-2DO.jpg
