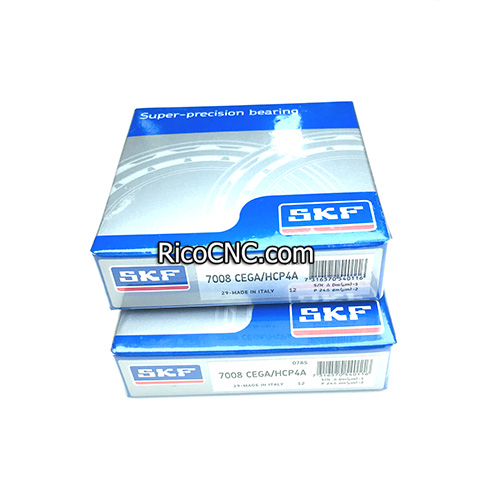

SKF 7008 CEGA HCP4A Precision Ball Bearings Open Type With Ceramic Balls

SKF 7008 CEGA HCP4A Precision Ball Bearings Open Type With Ceramic Balls

• SKF 7008
• 7008 CEGA HCP4A
• 7008 Precision Ball Bearings
• SKF-Bearing 7008
• 7008 CEGA/HCP4A
• Skf Ceramic Ball Spindle Bearing
• SKF 7008 ceramic ball bearing
INQUIRY

SKF 7008 CEGA HCP4A Precision Ball Bearings Open Type With Ceramic Balls

This SKF 7008 CEGA HCP4A Precision Ball Bearings is Super-precision, high-speed, E design, universally matchable single row angular contact ball bearing.

7008 Precision Ball Bearings.jpg

These super-precision, high-speed, E design, single row angular contact ball bearings accommodate radial and axial loads acting simultaneously, where the axial load acts in one direction only. They are designed for high-speed operation and, compared to SKF B design high-speed bearings, have a slightly higher speed capability and can accommodate heavier loads. Being universally matchable, they can be used together in arrangements to provide effective load sharing, within a predetermined preload range, without the use of shims or similar devices.

SKF-Bearing 7008.jpg

SKF-Bearing 7008 features:

• 15° or 25° contact angle

• Very high running accuracy

• Accommodate very high speeds

• Universally matchable

7008 CEGA HCP4A.jpg

7008 Precision Ball Bearings dimension:

SKF 7008 ceramic ball bearing.jpg

d	40 mm	Bore diameter
D	68 mm	Outside diameter
B	15 mm	Width
d1	49.7 mm	Shoulder diameter of inner ring (large side face)
d2	47.6 mm	Shoulder diameter of inner ring (small side face)
D1	58.25 mm	Shoulder diameter of outer ring (large side face)
r1,2	min.1 mm	Chamfer dimension (large side face)
r3,4	min.0.6 mm	Chamfer dimension (small side face)
a	14.8 mm	Distance from side face to pressure point
