Can EVA Foam Be CNC Milled?

Introduction

EVA (Ethylene-Vinyl Acetate) foam is a popular material used in a wide variety of industries, from crafting cosplay accessories to manufacturing shock-absorbing padding. However, one question often arises: can EVA foam be CNC milled? The short answer is yes. CNC milling EVA foam is a feasible, efficient way to achieve precise cuts and intricate designs, making it a favored method for hobbyists and manufacturers alike. In this article, we will delve into the world of CNC milling EVA foam, discussing the benefits, the best practices, and the tools you need for ultimate success.

The Versatility of EVA Foam in Milling Projects

EVA foam stands out for its versatility. It can be easily shaped, molded, and cut into different forms. When CNC milling comes into the picture, its versatility multiplies. With a CNC router, it's possible to create clean, smooth designs with minimal manual effort. EVA foam can be milled to produce everything from industrial components to creative props, and the foam's natural resilience means it stands up well to milling without tearing or chipping.

Why CNC Milling EVA Foam Is Effective

1. Precision and Accuracy

One of the major advantages of CNC milling EVA foam is the precision it offers. EVA foam often needs to be cut with accuracy, particularly for applications like shoe soles, protective gear, or even gaskets. A CNC router allows you to create precise cuts without the need for constant manual intervention, resulting in consistency and quality in every piece.

· Improved Consistency: CNC milling can replicate cuts with great accuracy, ensuring every piece matches the exact specifications.

· Complex Designs: Intricate patterns and shapes that would be challenging to cut by hand can be achieved easily using a CNC router.

2. Efficiency in Production

Compared to traditional manual methods, CNC milling provides a significant boost in efficiency. Automated cutting not only saves time but also minimizes material waste. Since EVA foam is soft and flexible, router bits used in CNC milling easily glide through the material, leaving clean edges and reducing the need for additional finishing work.

· Reduced Waste: With CNC machines, precision cutting means less material wastage, which is especially beneficial when using high-quality EVA foam.

· Faster Output: Once programmed, a CNC router can operate with little supervision, significantly speeding up the manufacturing process.

Key Considerations When CNC Milling EVA Foam

1. Selecting the Right Router Bit

When milling EVA foam, choosing the right router bit is essential to ensure clean cuts. Given the soft nature of the foam, using the correct bit can help prevent chipping and tearing.

· Up-Cut Bits: These are excellent for milling EVA foam, as they help pull the material away from the cutting area, reducing the risk of uneven edges.

· Compression Bits: Useful when a smooth finish on both sides of the foam is needed, as they minimize fraying by compressing the material during the cut.

· Straight Flute Bits: These bits provide clean, straight cuts, ideal for EVA foam projects where accuracy is crucial.

2. Machine Settings: Feed Rate and Spindle Speed

Setting the right feed rate and spindle speed is vital for clean cuts when milling EVA foam.

· Spindle Speed: EVA foam requires moderate spindle speeds to avoid overheating, which can lead to melting or poor-quality edges. A spindle speed of about 12,000 RPM is typically sufficient for EVA foam.

· Feed Rate: A high feed rate will reduce friction and heat build-up. It's usually better to start with a feed rate of around 100 inches per minute and adjust as needed based on the foam density.

Applications of CNC Milling EVA Foam

1. Crafting and Cosplay

EVA foam is a favored material in the crafting community, especially among cosplayers. CNC milling allows the creation of intricate armor pieces, weapon replicas, and costume elements with precision that manual methods can't easily achieve. The flexibility of EVA foam makes it ideal for costumes, while CNC milling provides the precise detailing that brings these designs to life.

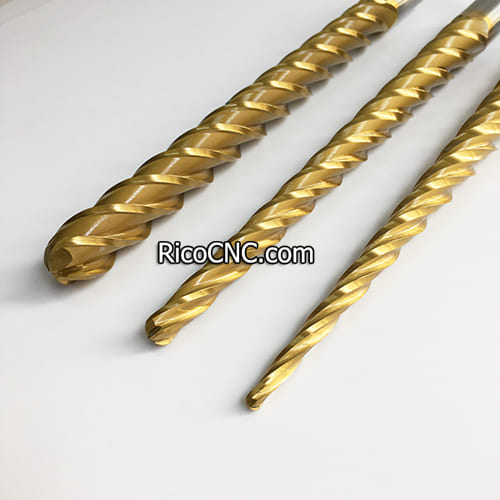

Using CNC routers, it's possible to craft perfectly symmetrical and elaborate cosplay elements that look polished and professional. Router bits like ball-nose bits help create smooth, rounded surfaces that are crucial for costumes with elaborate curves and edges.

2. Industrial and Manufacturing Uses

EVA foam is not just for crafting; it's used extensively in industrial settings as well. Products like packaging inserts, shock-absorbent pads, and gaskets are commonly made from EVA foam using CNC milling. The efficiency of CNC milling ensures that these items are produced with uniform quality and exact measurements every time.

· Shock Absorbers and Padding: EVA foam's shock-absorbing properties make it perfect for padding materials in sporting equipment, shoes, and even within packaging for delicate items.

· Gaskets and Insulators: CNC milling allows for the accurate production of gaskets used in automotive and other industries, ensuring they fit perfectly without requiring significant post-processing.

Challenges and Solutions in CNC Milling EVA Foam

1. Melting and Uneven Cuts

EVA foam is sensitive to heat, and when CNC milling, the friction between the bit and foam can cause melting, leading to rough, uneven cuts.

Solution: To avoid this, use a moderate spindle speed and maintain a fast feed rate to reduce the amount of heat generated during cutting. Additionally, cooling methods like compressed air can help prevent overheating.

2. Foam Movement During Milling

Since EVA foam is soft and flexible, it can move around during milling, affecting the precision of the cuts.

Solution: Using double-sided adhesive or clamps to secure the foam sheet to the milling table can help prevent movement. Vacuum tables are another effective way to hold the foam in place during cutting.

3. Bit Longevity

Cutting foam can cause rapid wear on the router bit, especially if it isn’t maintained correctly.

Solution: Always clean the router bit after each milling session to remove foam residue. Additionally, consider using coated bits for better durability.

Frequently Asked Questions

 1. What type of CNC router bit should I use for EVA foam?

Straight flute router bits and EVA foam cutting bits are recommended as they provide clean cuts without fraying or chipping the foam material.

2. What is the ideal spindle speed for milling EVA foam?

The ideal spindle speed for EVA foam is usually around 12,000 RPM. However, this can vary based on the foam density.

3. How can I prevent my EVA foam from melting while milling?

Use moderate spindle speeds, ensure a high feed rate, and consider adding compressed air cooling to minimize the chances of the foam melting.

4. Can EVA foam be used for industrial components?

Yes, EVA foam is commonly used in industrial components such as gaskets, shock absorbers, and packaging inserts. CNC milling is a highly effective way to manufacture these components with precision.

5. How do I secure EVA foam to a CNC table for cutting?

You can use double-sided adhesive, clamps, or a vacuum table to hold EVA foam in place during CNC milling.

6. Can EVA foam be used to make detailed craft items?

Absolutely. EVA foam is great for crafting detailed items, and CNC milling can add the precision needed for elaborate projects such as cosplay armor and decorations.

Conclusion

In conclusion, CNC milling is a fantastic way to work with EVA foam. Whether you are a hobbyist looking to create intricate costumes or a manufacturer needing precise industrial components, CNC milling provides an effective solution for cutting EVA foam cleanly and consistently. By selecting the right router bits, adjusting your machine settings appropriately, and following best practices for securing and cooling the material, you can achieve impressive results with minimal effort.

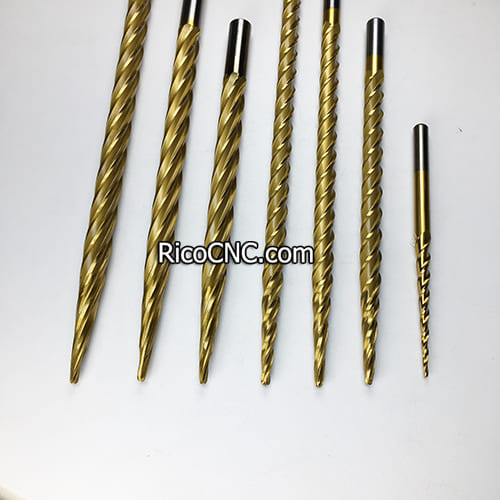

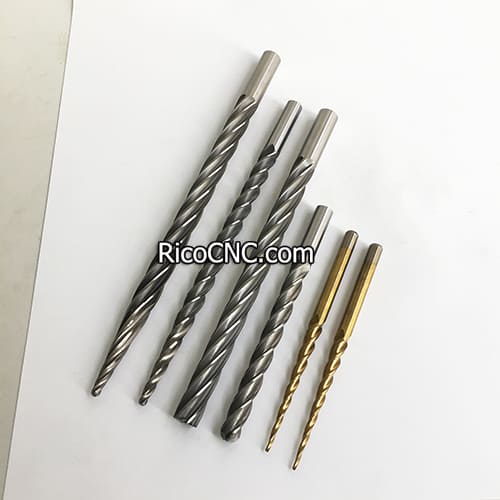

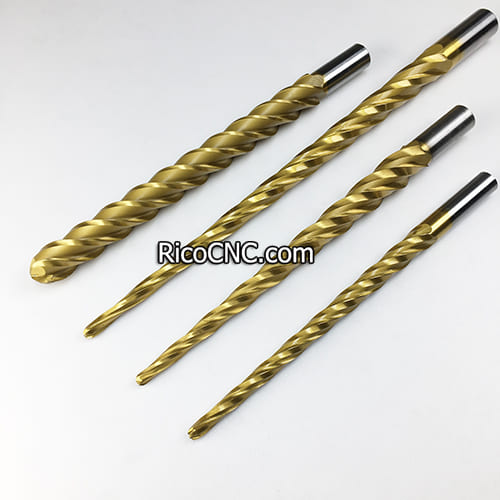

Explore more options for enhancing your CNC milling capabilities at RicoCNC. A wide range of automation components like Ballnose Long Foam Router Bits, Conical Ball End Tapered Foam Mill Bits, Conical Ball End Tapered Foam Mill Bits, Bottom Cleaning Router Bit, are available to help you get the most out of your foam milling projects.
