    DSP Control System Characteristics

    cnc router DSP handle control system

    Controller is the most important part for one CNC machine. DSP controller can work without computer, easy operation and fast working speed. It is the mostly used control system for cnc router machine. Now here is more details information about the DSP control system.

    RichAuto is CNC motion control system independently developed by Beijing Ruizhi Tianhong and it can be widely applied to CNC machinery, advertisementwoodworkingmold engraving machinecnc laser, flame, plasma cutting machine, and so on in the machine control field.

    RichAuto make DSP as the core control system, High-speed processing operation is the microcontroller, PLC systems can't match锛沀se embedded structure, High degree of integration, Strong stability, easy to installation and operation锛沀 disk support, Removable storage card reader, with USB Interface, High speed transfer, Plug and play the full realization of all work offline.

    DSP controller characteristics:

    1. System deploy standard X, Y, Z axis motion control method, Support the rotation axis锛圕 axis锛塩ontrol, Enables to switch the processing of surface and processing of rotation; up extended to X, Y, Z, C four-axis motion control, implementation four axis interlocking Control.

    2. Multi I/O Point Control, there is eight input and output signals in every basic I/O signal node, Expansion I/O nodes can be expanded to 32 input and output signals.

    3. Support the standard G code, PLT format instructions; support domestic and international mainstream CAM software, such as: Type3, Art cam, UG, Pro/E, Master CAM, Cimatron, Wentai etc.

    4. Provide with power-down protection. Instantaneous power processing system to automatically save the current processing of information (file name, current line number processing, processing speed, spindle threshold), when power again machine moves back, the system automatically prompts the user to restore the processing before power down, the processing operations become more humanity.

    5. Support breakpoint memory, file selection, processing. Save 8 different breakpoint processing information.

    6. Multi-coordinate memory function. Provide nine working coordinate system, the user can switch among the 9 coordinate, each coordinate system can save a process origin information.

    7. Support online adjust spindle operating frequency. The spindle frequency from 0 to maximum frequency is divided into 8 thresholds; 1-8 threshold can be processed directly adjust up and down without suspend processing.

    8. Support adjust speed ratio online. Users can adjust the speed ratio, to adjust the processing speed and empty running speed, speed ratio values from 0.1-1, Ascending or descending per 0.1 numerical.

    9. Simply manual operate mode. In manual mode, the system provides three kinds of sports concluding continuous, step (crawl), distance, manual operation became more simple and convenient.

    10. Identifies M code, F code and other development commands, can open a special code based on user needs.

    11. Built-in 512M memory.

    12. Unique handheld form factor with one hand to hold. Own liquid crystal display and 16 key keyboard, operate intuitive and flexible, no longer dependent on the computer, the full realization of full offline operation.

    13. Comes with USB communications port, file transfer efficiency can be directly read U disk, card reader file, Plug and Play.

    14. Self-test function, the system comes with I/O port signal detection capabilities, ease of remote maintenance.

    15. Processing with high-speed and smooth, support high subdivide, make sure processing with high accuracy and high speed.

    16. Unique in Chinese-English to show double-interface, can be realized in switching Chinese and English show online.

    17. Multi-language display. Support for Simplified Chinese, Traditional Chinese, English, Russian, French and other languages, can be customized according to user needs.

    18. System can support automatic dynamic upgrades, convenient to remote operation, remote maintenance.

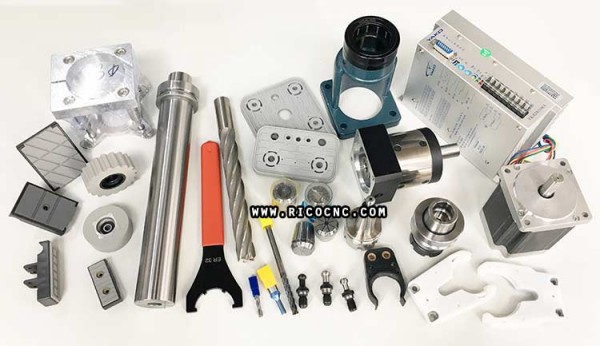

    If any interests in CNC router products or CNC spare parts, welcome to contact us, more information will be sent.
