4011041688 4-011-04-1688 Pressure Control Valve For Homag Edgebanding Machine

4011041688 4-011-04-1688 Pressure Control Valve For Homag Edgebanding Machine

• Control valve NL 1 G1/4 0.2-6.0 BAR
• 4-011-04-1688 Homag control valve
• Homag 4011041688 pressure control valve
• 4011041688 Homag pressure regulation valve
• 4011041688 pressure regulating valve
• Pressure regulator for Homag edgebanding machine
• Homag 4-011-04-1688 air pressure regulator
• 0821302743 Aventics Pneumatic Regulator
INQUIRY

4011041688 4-011-04-1688 Pressure Control Valve For Homag Edgebanding Machine

This part is Aventics 0821302743 pneumatic regulator NL1-RGS-G014-GAH-MAN-060-DS. The pressure control valve can be used on Homag edge banding machine.

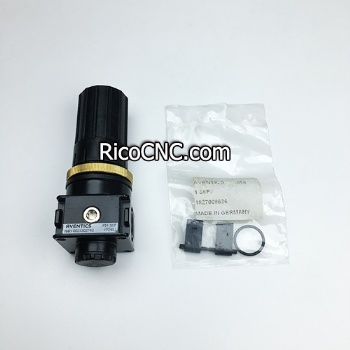

0821302743 Aventics valve.jpg

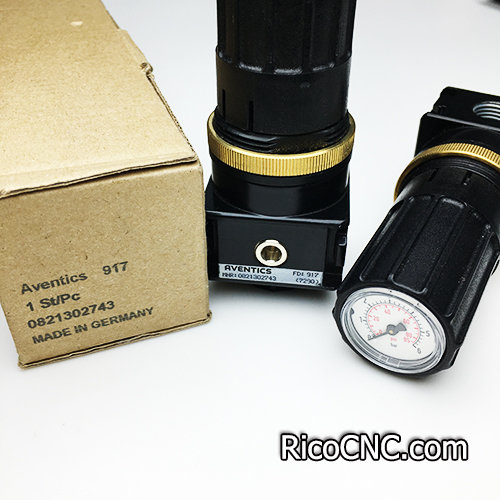

Homag 4011041688 pressure control valve.jpg

Homag part number: 4011041688 4-011-04-1688
Manufacturer: Aventics
Manufacturer part number: 0821302743
Pressure regulator, Series NL1-RGS-…-DS
Pneumatic port: G 1/4
Flow Qn: 1350l/min
Ambient Temperature Max: 50DegC
Ambient Temperature Min: -10DegC
Working Pressure Max: 16 Bar
Working Pressure Min:0.5 Bar

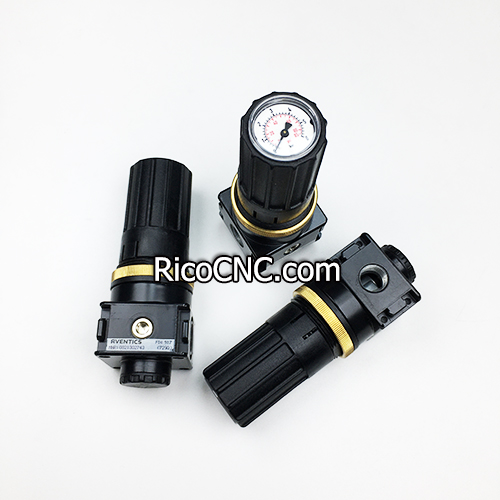

4011041688 pressure regulating valve.jpg
