4006102673 4-006-10-2673 Linear Bearing SNS GR 30N 1629-720-90

4006102673 4-006-10-2673 Linear Bearing SNS GR 30N 1629-720-90

• 4006102673 linear bearing
• HOMAG 4-006-10-2673
• R162271420 and R161972130
• GUIDE CARRIAGE SNS GR.30N 1629-720-90
• 4-006-10-2850 Bosch Rexroth R162271420
• R162972090
• Front seal R161972130 with R162271420
• 1629-720-90 REXROTH
INQUIRY

4006102673 4-006-10-2673 Linear Bearing SNS GR 30N 1629-720-90

This is Bosch Rexroth B.RUNNER BLOCK CS KWD-030-SNS-C1-N-1 S (R162972090), HOMAG part number is 4006102673 or 4-006-10-2673, used for for machine: 0-241-04-2133.

4006102673 is a high-precision ball runner block designed for linear motion applications. The B.RUNNER BLOCK CS KWD-030-SNS-C1-N-1 S also includes standard front seals on both the left and right attachment elements, enhancing its longevity by preventing contamination from entering the runner block. It is block R162271420 (4-006-10-2850) with front seal R161972130.

R162972090 specifications:

manufacturer	Bosch Rexroth
dimensions	28 x 60 x 97.7
weight	0.947 kg
L [mm]	97.7
L1 [mm]	67.4
L2 [mm]	60

REXROTH R161972130 seal Specifications

Front seal for ball rail systems. Size 30

Material: Corrosion-resistant steel as per DIN EN 10088 with plastic seal

Design: bright

Two sections

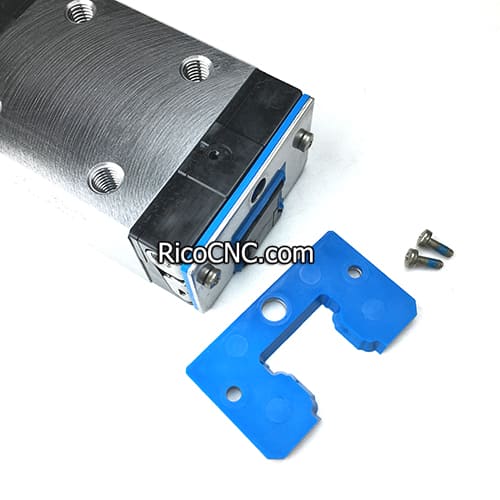

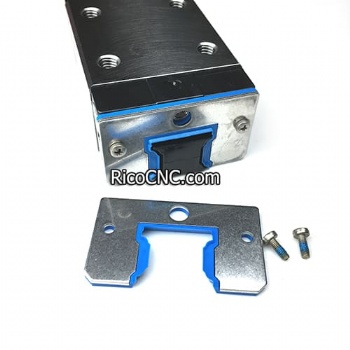

R162271420 and R161972130.jpg

RicoCNC can offer a range of Bosch Rexroth runner blocks. Please send the model number and photos of the guide carriage you will need, and we will send the quote to you.
